Flexible Heating Tape
Flexible Heating Tape
TE-A,TE-B,TE-C,TE-D

Brand:
RUISCI
-
Choice
- TE-A-01,Retardant,8mm*100m
- TE-A-02,Retardant,10mm*100m
- TE-A-03,Retardant,12mm*100m
- TE-B-01,Explosion Proof,8mm*100m
- TE-B-02,Explosion Proof,10mm*100m
- TE-B-03,Explosion Proof,12mm*100m
- TE-B-04,Reinforced,14mm*100m
- TE-B-05,Anti Corrosion,14mm*100m
- TE-C-01,Temperature,12mm*100m
- TE-C-02,Shielded,12mm*100m
- TE-C-03,Explosion Proof Reinforced,14mm*100m
- TE-C-04,Anti Corrosion Reinforced,14mm*100m
- TE-D-01,High Temperature,100m
- TE-D-02,High Temperature Constant Power Explosion Proof Reinforced,100m
Inventory
3752
隐藏域元素占位
Overview
Flexible Heating Tape utilizes PTC conductive plastics to automatically adjust the power, thereby maintaining a stable temperature. It finds extensive applications in industrial, architectural, and civil sectors, serving purposes such as anti - freezing insulation and process temperature control.
Features
1. The conductor is fabricated from high - quality materials, characterized by high electrical conductivity, low loss, and strong current - carrying capacity.
2. It exhibits good flexibility, is resistant to aging and deformation, demonstrates excellent thermal conductivity, and distributes heat uniformly.
3. TE-A is applicable to household water pipes and other scenarios, functioning for freeze protection and thermal insulation.
4. TE-B-01~03 and TE-C-02 are suitable for pipelines in industrial settings, natural gas materials transportation, oil fields, wastewater systems, etc., serving the purposes of thermal insulation and explosion prevention.
5. TE-B-04~05, TE-C-03~04, and TE - D - 02 are appropriate for thermal insulation, flame retardancy, and explosion prevention in industrial applications, natural gas pipelines, factories, oil fields, etc.

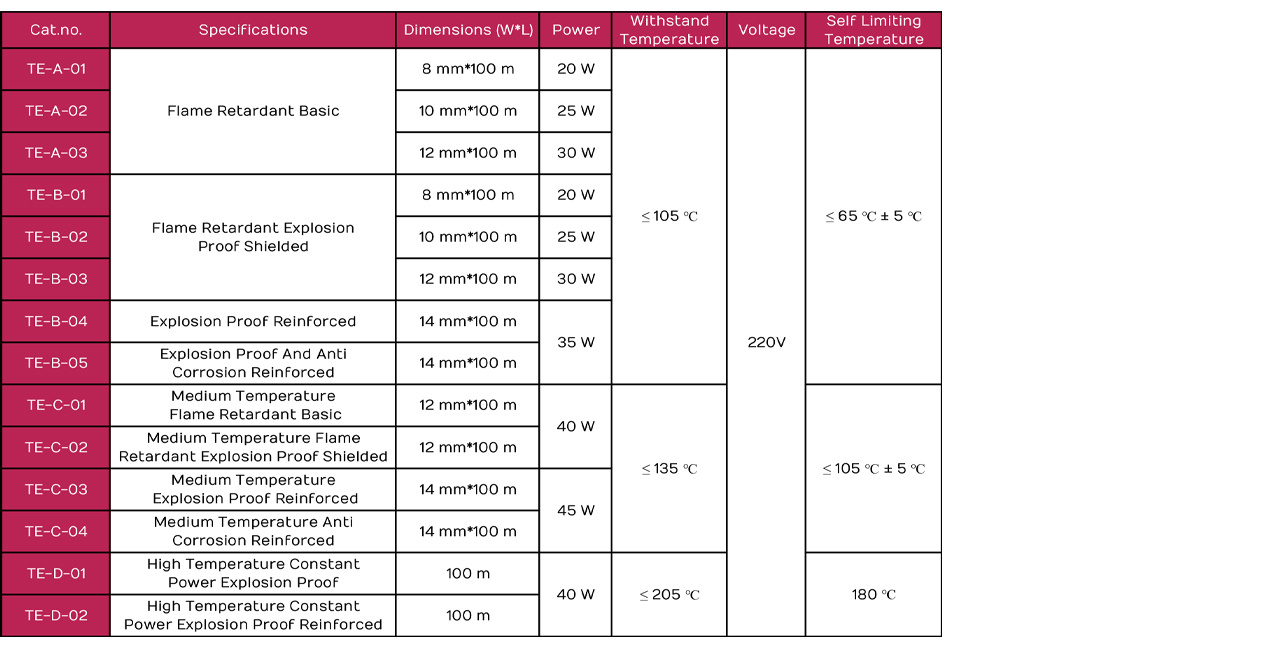

Technical data
Precautions:
1.For the product with a diameter of 8 mm, it can be cut to any length within 30 meters for use. For the one with a diameter of 10 mm, it can be cut to any length within 50 meters for use. And for the product with a diameter of 12 mm, it can be cut to any length within 100 meters for use.
2. The basic type is suitable for cold regions with a temperature of ≤ -20℃; the reinforced type is suitable for cold regions with a temperature of ≤ -45℃; the medium-temperature type can reach about 80℃, and the high-temperature type can reach about 180℃.
3. Although the flexible heating tape has a certain degree of flexibility, attention should still be paid to its maximum usage length limit in actual use to avoid problems such as power loss and inaccurate temperature control caused by excessive length.
4. Although it has flame retardancy and certain weather resistance, additional protective measures should still be taken in special environments (such as strong corrosiveness, high humidity, etc.) to ensure its performance and service life.
5. Although the flexible heating tape basically does not require maintenance, it is still recommended to conduct regular inspections to check for damage, aging, wear and other conditions, and promptly identify and handle potential problems to ensure its long-term stable operation.
keyword:
Flexible Heating Tape
Self Limiting Temperature Electric Heating Tape
Temperature Regulating Strip, controlled temperature band,
Temperature control tape
Temperature Control Belt
Self Regulating Heating Cable
Strip Constant Temperature Electric Heater
Temperature Regulating Strip
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: Flexible Heating Tape
- Subtitle: Flexible Heating Tape
- Model: TE-A,TE-B,TE-C,TE-D
- 全部型号: TE-A-01,TE-A-02,TE-A-03,TE-B-01,TE-B-02,TE-B-03,TE-B-04,TE-B-05,TE-C-01,TE-C-02,TE-C-03,TE-C-04,TE-D-01,TE-D-02,Flexible Heating Tape, Self Limiting Temperature Electric Heating Tape, Temperature Regulating Strip, controlled temperature band, Temperature control tape, Temperature Control Belt, Self Regulating Heating Cable, Strip Constant Temperature Electric Heater, Self Limiting Temperature Electric Heating Tape,Temperature Regulating Strip
Flexible Heating Tape utilizes PTC conductive plastics to automatically adjust the power, thereby maintaining a stable temperature.
Flexible Heating Tape utilizes PTC conductive plastics to automatically adjust the power, thereby maintaining a stable temperature. It finds extensive applications in industrial, architectural, and civil sectors, serving purposes such as anti - freezing insulation and process temperature control.
-
1. The conductor is fabricated from high - quality materials, characterized by high electrical conductivity, low loss, and strong current - carrying capacity.
2. It exhibits good flexibility, is resistant to aging and deformation, demonstrates excellent thermal conductivity, and distributes heat uniformly.
3. TE-A is applicable to household water pipes and other scenarios, functioning for freeze protection and thermal insulation.
4. TE-B-01~03 and TE-C-02 are suitable for pipelines in industrial settings, natural gas materials transportation, oil fields, wastewater systems, etc., serving the purposes of thermal insulation and explosion prevention.
5. TE-B-04~05, TE-C-03~04, and TE - D - 02 are appropriate for thermal insulation, flame retardancy, and explosion prevention in industrial applications, natural gas pipelines, factories, oil fields, etc. -
Precautions:
1.For the product with a diameter of 8 mm, it can be cut to any length within 30 meters for use. For the one with a diameter of 10 mm, it can be cut to any length within 50 meters for use. And for the product with a diameter of 12 mm, it can be cut to any length within 100 meters for use.
2. The basic type is suitable for cold regions with a temperature of ≤ -20℃; the reinforced type is suitable for cold regions with a temperature of ≤ -45℃; the medium-temperature type can reach about 80℃, and the high-temperature type can reach about 180℃.
3. Although the flexible heating tape has a certain degree of flexibility, attention should still be paid to its maximum usage length limit in actual use to avoid problems such as power loss and inaccurate temperature control caused by excessive length.
4. Although it has flame retardancy and certain weather resistance, additional protective measures should still be taken in special environments (such as strong corrosiveness, high humidity, etc.) to ensure its performance and service life.
5. Although the flexible heating tape basically does not require maintenance, it is still recommended to conduct regular inspections to check for damage, aging, wear and other conditions, and promptly identify and handle potential problems to ensure its long-term stable operation.
