Gloss Meter
Gloss Meter
RGSM-A
Brand：
RUISCI
-
Choice
- RGSM-A-01,1GU
- RGSM-A-02,0.1GU,0-200GU
- RGSM-A-03,0.1GU,0-1000GU
- RGSM-A-04,4GU
- RGSM-A-05,5GU
- RGSM-A-06,6GU
Inventory
1008
隐藏域元素占位
Overview
The Gloss Meter is based on the principles of light reflection and refraction. It determines the glossiness of an object's surface by measuring the intensity of the reflected light. It is professionally used for surface glossiness testing of products such as paints, coatings, inks, plastics, papers, tiles, ceramics, stones, metals, and electroplated layers.
Features
1. Wide application range, meeting the gloss measurement requirements of various materials.
2. No buttons needed, ready to measure upon startup, improving detection efficiency.
3. Temperature compensation technology, no frequent calibration required.
4. Conforms to the spectral visual function V(λ), ensuring more accurate measurement of colored objects.
5. QC measurement mode, with upper and lower limits settable, automatically determining if the data is qualified.
6. The bottom cover serves as the calibration plate, making calibration convenient and less prone to loss.
7. Long-lasting battery life, energy-saving and environmentally friendly.

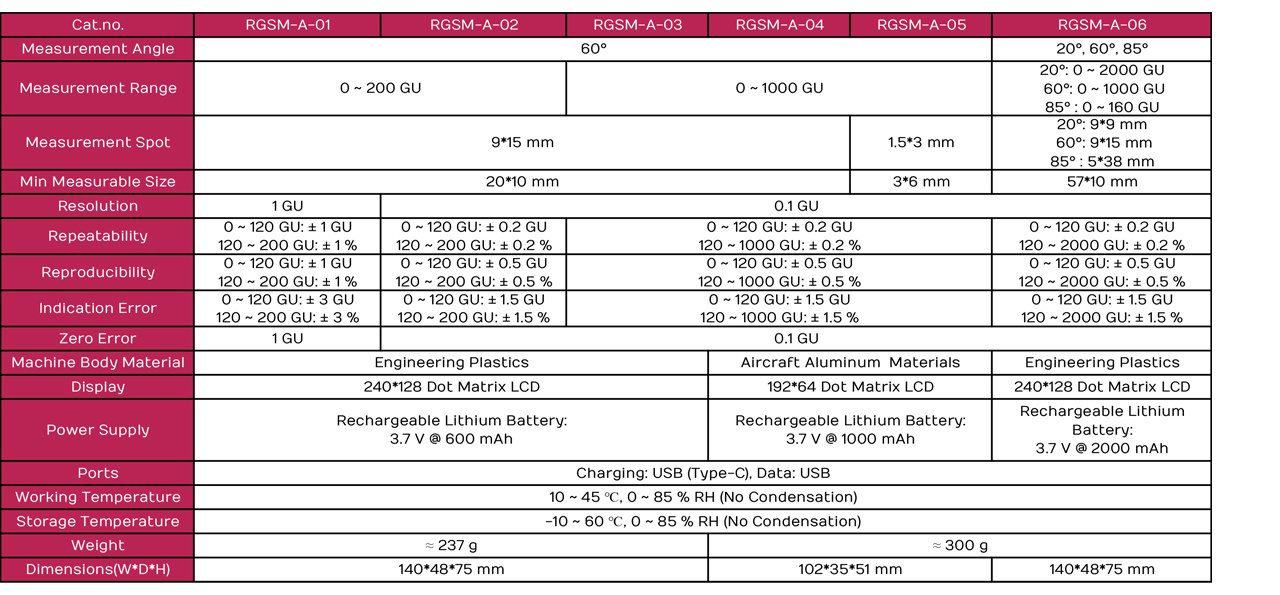

Technical data
Precautions
1. The instrument has temperature compensation and allows for long-term calibration. It is recommended to calibrate it once a week. If there is a significant change in the ambient temperature, recalibration is necessary.
2. The test port of the instrument should be in close contact with the surface of the object being measured to prevent external light from entering.
3. After removing the base from the main unit, it should be stored in a clean place to avoid contamination of the standard plate.
4. Do not insert any objects into the instrument for cleaning, as this may damage the instrument, affect measurement accuracy and operational safety.
5. Before storage and use, both the instrument and the standard plate should be cleaned thoroughly. Use a clean dedicated lens cloth to remove contaminants. The surface of the standard plate is very precise, so ensure that the lens cloth has no fine particles or debris, otherwise it may damage the standard plate.
6. If there are multiple instruments, they must be calibrated in the base corresponding to their serial numbers.
7. When the battery of the instrument is empty, it should be charged in time.
8. If the instrument is not used for more than half a year, it should be charged regularly to prevent battery damage due to excessive discharge.
keyword：
Gloss Meter
Gloss Checker
Handheld Gloss Tester for Plastic/Paper/Metal
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: Gloss Meter
- Subtitle: Gloss Meter
- Model: RGSM-A
- 全部型号: RGSM-A-01,RGSM-A-02,RGSM-A-03,RGSM-A-04,RGSM-A-05,RGSM-A-06,Gloss Meter,Gloss Checker,Handheld Gloss Tester for Plastic/Paper/Metal
The Gloss Meter is based on the principles of light reflection and refraction. It determines the glossiness of an object's surface by measuring the intensity of the reflected light.
The Gloss Meter is based on the principles of light reflection and refraction. It determines the glossiness of an object's surface by measuring the intensity of the reflected light. It is professionally used for surface glossiness testing of products such as paints, coatings, inks, plastics, papers, tiles, ceramics, stones, metals, and electroplated layers.
-
1. Wide application range, meeting the gloss measurement requirements of various materials.
2. No buttons needed, ready to measure upon startup, improving detection efficiency.
3. Temperature compensation technology, no frequent calibration required.
4. Conforms to the spectral visual function V(λ), ensuring more accurate measurement of colored objects.
5. QC measurement mode, with upper and lower limits settable, automatically determining if the data is qualified.
6. The bottom cover serves as the calibration plate, making calibration convenient and less prone to loss.
7. Long-lasting battery life, energy-saving and environmentally friendly. -
Precautions
1. The instrument has temperature compensation and allows for long-term calibration. It is recommended to calibrate it once a week. If there is a significant change in the ambient temperature, recalibration is necessary.
2. The test port of the instrument should be in close contact with the surface of the object being measured to prevent external light from entering.
3. After removing the base from the main unit, it should be stored in a clean place to avoid contamination of the standard plate.
4. Do not insert any objects into the instrument for cleaning, as this may damage the instrument, affect measurement accuracy and operational safety.
5. Before storage and use, both the instrument and the standard plate should be cleaned thoroughly. Use a clean dedicated lens cloth to remove contaminants. The surface of the standard plate is very precise, so ensure that the lens cloth has no fine particles or debris, otherwise it may damage the standard plate.
6. If there are multiple instruments, they must be calibrated in the base corresponding to their serial numbers.
7. When the battery of the instrument is empty, it should be charged in time.
8. If the instrument is not used for more than half a year, it should be charged regularly to prevent battery damage due to excessive discharge.
Q and A
Q
Distribution Modes:
A
Default Distribution Mode: EXW China Factory: After your payment is received, our customer service will contact you to confirm the pickup time and location once the goods are ready at the RUISCI China factory.
*Other options:
1.Carriage Paid To (CPT)
DO NOT PAY until you have contacted customer service to add shipping costs, as the default price is EXW China factory.
2.Delivered Duty Paid（DDP）
DO NOT PAY until you have ·contacted customer service to add Freight, insurance, taxes, customs clearance fees, and other miscellaneous expenses, as the default price is EXW China factory. Typically applies exclusively to small air cargo packages.
3. FOB China main port
DO NOT PAY until you have contacted customer service to add the inland charges and export declaration charges, as the default price is EXW China factory.
*** If you still need to consult other distribution modes or trade terms, please contact our customer service directly
Q
Payment methods:
A
1. On-line payment: Paypal
2. Off-line payment: Telegraphic Transfer (TT)
*All charges, except those incurred within our bank, are to be borne by the remitter. Insufficient payment will delay your shipment.
