Fall Escape Tripod And Winch

Fall Escape Tripod And Winch

FC-A,FC-B


RUISCI

Brand:

RUISCI


USD

126

Untaxed

EXW factory


  • Choice
    • FC-A-01,Thickened,300kg
    • FC-A-02,Thickened,300kg
    • FC-A-03,Thickened,300kg
    • FC-A-04,Thickened,300kg
    • FC-A-05,Thickened,300kg
    • FC-A-06,Thickened,300kg
    • FC-A-07,Thickened,400kg
    • FC-A-08,Thickened,400kg
    • FC-A-09,Thickened,400kg
    • FC-A-10,Thickened,400kg
    • FC-A-11,Thickened,400kg
    • FC-A-12,Thickened,400kg
    • FC-A-13,Thickened,500kg
    • FC-A-14,Thickened,500kg
    • FC-A-15,Thickened,500kg
    • FC-A-16,Thickened,500kg
    • FC-A-17,Thickened,500kg
    • FC-A-18,Thickened,500kg
    • FC-B-01,Heavy Duty,300kg
    • FC-B-02,Heavy Duty,300kg
    • FC-B-03,Heavy Duty300kg
    • FC-B-04,Heavy Duty,400kg
    • FC-B-05,Heavy Duty,400kg
    • FC-B-06,Heavy Duty,400kg
    • FC-B-07,Heavy Duty,500kg
    • FC-B-08,Heavy Duty,500kg
    • FC-B-09,Heavy Duty,500kg
Quantity
-
+

Inventory

5994

隐藏域元素占位


The fall escape tripod and winch system is an emergency escape device designed for high-altitude operations. It integrates the stable supporting function of the tripod and the lifting function of the winch, enabling operators to escape safely in the event of a fall.


1. The product is made of aluminum materials that meet national standards and undergoes anodized surface treatment.
2. The top cover is manufactured through die-casting technology. It features a compact structure, ensuring safety, durability, and a high load-bearing capacity.
3. It is equipped with both single and double hooks. The single hook is a forged anti-detachment hook, and the double hook is a bearing pulley type.
4. The safety chain is made of stainless steel in a circular shape. It has good flexibility and higher tensile strength.
5. The self-locking winch is equipped with self-locking devices for both ascending and descending operations. It offers a uniform cranking speed without jerks.

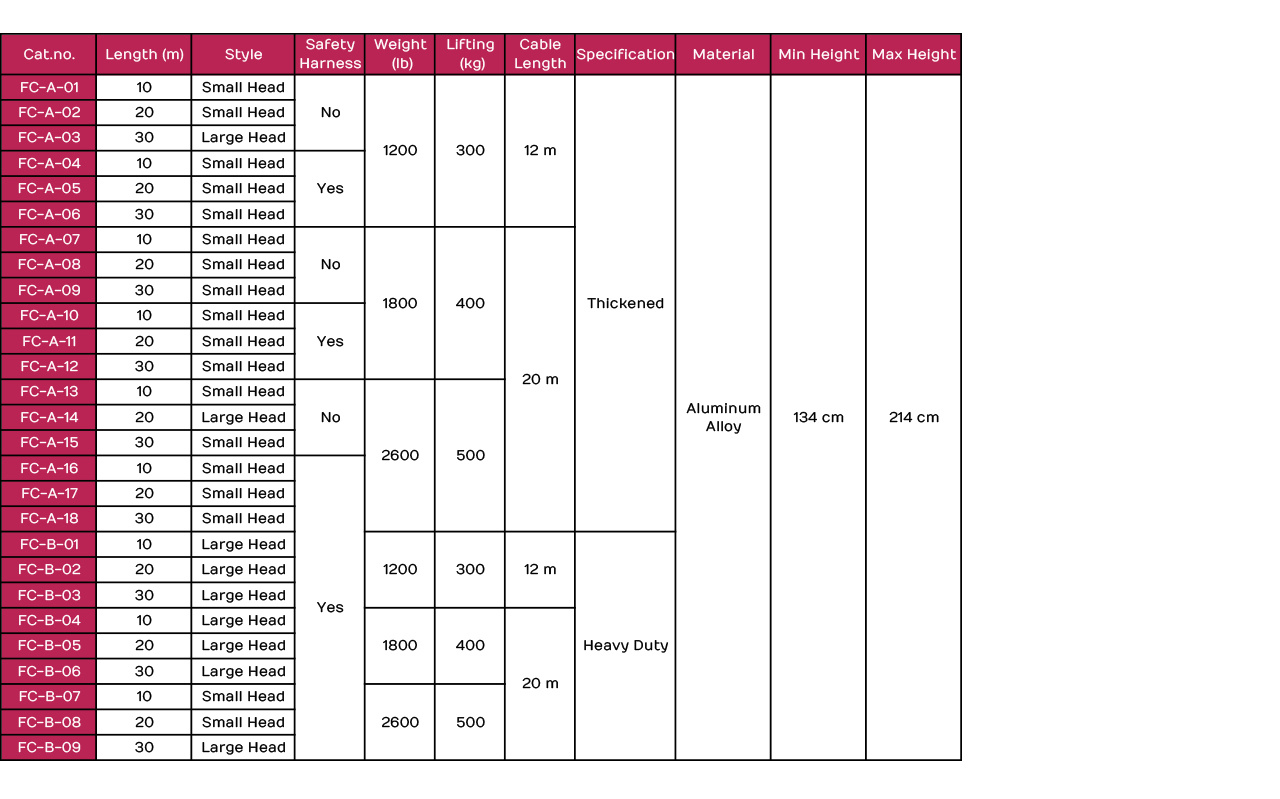

Technical data

Precautions:
1. Before use, conduct a meticulous inspection of the tripod's supports for any indications of deformation, cracks, or damage. Ensure that all connection points are securely fastened without any looseness.
2. Examine the winch's casing, handle, and chain (or wire rope) for signs of wear, cracks, or deformation. The chain or wire rope should be free from kinks, knots, and corrosion.
3. The tripod should be installed on a firm and level surface. Refrain from using it on soft, slippery, or unstable ground. If ground conditions are unstable, reinforce the setup with steel plates or ground anchors.
4. The three legs of the tripod should be evenly spaced to form a stable triangular support structure with the ground. The angle between the legs and the ground should be maintained within the range of 60° to 75° to guarantee stability.
5. After use, promptly clean the dust, oil, and debris from the surface of the equipment. Regularly lubricate components such as the chain or wire rope and gears of the winch to minimize wear and extend its service life.
6. Store the equipment in a dry, well-ventilated environment, free from corrosive gases. Avoid direct sunlight and prolonged exposure to humid conditions to prevent rusting and damage to the equipment.

keyword:

Fall Escape Tripod And Winch

Emergency Descent Tripod And Winch System

Fire Rescue Tripod with Manual Winch

Portable Aluminum Emergency Tripod Set

  • 产品描述
  • 概要参数
  • 技术参数
    • Brand: RUISCI
    • Commodity name: Fall Escape Tripod And Winch
    • Subtitle: Fall Escape Tripod And Winch
    • Model: FC-A,FC-B
    • 全部型号: FC-A-01,FC-A-02,FC-A-03,FC-A-04,FC-A-05,FC-A-06,FC-A-07,FC-A-08,FC-A-09,FC-A-10,FC-A-11,FC-A-12,FC-A-13,FC-A-14,FC-A-15,FC-A-16,FC-A-17,FC-A-18,FC-B-01,FC-B-02,FC-B-03,FC-B-04,FC-B-05,FC-B-06,FC-B-07,FC-B-08,FC-B-09,Fall Escape Tripod And Winch,Emergency Descent Tripod And Winch System,Fire Rescue Tripod with Manual Winch,Portable Aluminum Emergency Tripod Set

    The fall escape tripod and winch system is an emergency escape device designed for high-altitude operations.

    The fall escape tripod and winch system is an emergency escape device designed for high-altitude operations. It integrates the stable supporting function of the tripod and the lifting function of the winch, enabling operators to escape safely in the event of a fall.

  • 1. The product is made of aluminum materials that meet national standards and undergoes anodized surface treatment.
    2. The top cover is manufactured through die-casting technology. It features a compact structure, ensuring safety, durability, and a high load-bearing capacity.
    3. It is equipped with both single and double hooks. The single hook is a forged anti-detachment hook, and the double hook is a bearing pulley type.
    4. The safety chain is made of stainless steel in a circular shape. It has good flexibility and higher tensile strength.
    5. The self-locking winch is equipped with self-locking devices for both ascending and descending operations. It offers a uniform cranking speed without jerks.

  • Precautions:
    1. Before use, conduct a meticulous inspection of the tripod's supports for any indications of deformation, cracks, or damage. Ensure that all connection points are securely fastened without any looseness.
    2. Examine the winch's casing, handle, and chain (or wire rope) for signs of wear, cracks, or deformation. The chain or wire rope should be free from kinks, knots, and corrosion.
    3. The tripod should be installed on a firm and level surface. Refrain from using it on soft, slippery, or unstable ground. If ground conditions are unstable, reinforce the setup with steel plates or ground anchors.
    4. The three legs of the tripod should be evenly spaced to form a stable triangular support structure with the ground. The angle between the legs and the ground should be maintained within the range of 60° to 75° to guarantee stability.
    5. After use, promptly clean the dust, oil, and debris from the surface of the equipment. Regularly lubricate components such as the chain or wire rope and gears of the winch to minimize wear and extend its service life.
    6. Store the equipment in a dry, well-ventilated environment, free from corrosive gases. Avoid direct sunlight and prolonged exposure to humid conditions to prevent rusting and damage to the equipment.

Q and A


Q

Distribution Modes:

A

Default Distribution Mode: EXW China Factory: After your payment is received, our customer service will contact you to confirm the pickup time and location once the goods are ready at the RUISCI China factory.

*Other options:

1.Carriage Paid To (CPT)

DO NOT PAY until you have contacted customer service to add shipping costs, as the default price is EXW China factory.

2.Delivered Duty Paid(DDP)

DO NOT PAY until you have ·contacted customer service to add Freight, insurance, taxes, customs clearance fees, and other miscellaneous expenses, as the default price is EXW China factory. Typically applies exclusively to small air cargo packages.

3. FOB China main port
DO NOT PAY until you have contacted customer service to add the inland charges and export declaration charges, as the default price is EXW China factory.



*** If you still need to consult other distribution modes or trade terms, please contact our customer service directly


Q

Payment methods:

A

1. On-line payment: Paypal

2. Off-line payment: Telegraphic Transfer (TT)



*All charges, except those incurred within our bank, are to be borne by the remitter.  Insufficient payment will delay your shipment.


Download


There is currently no content to display

Related products

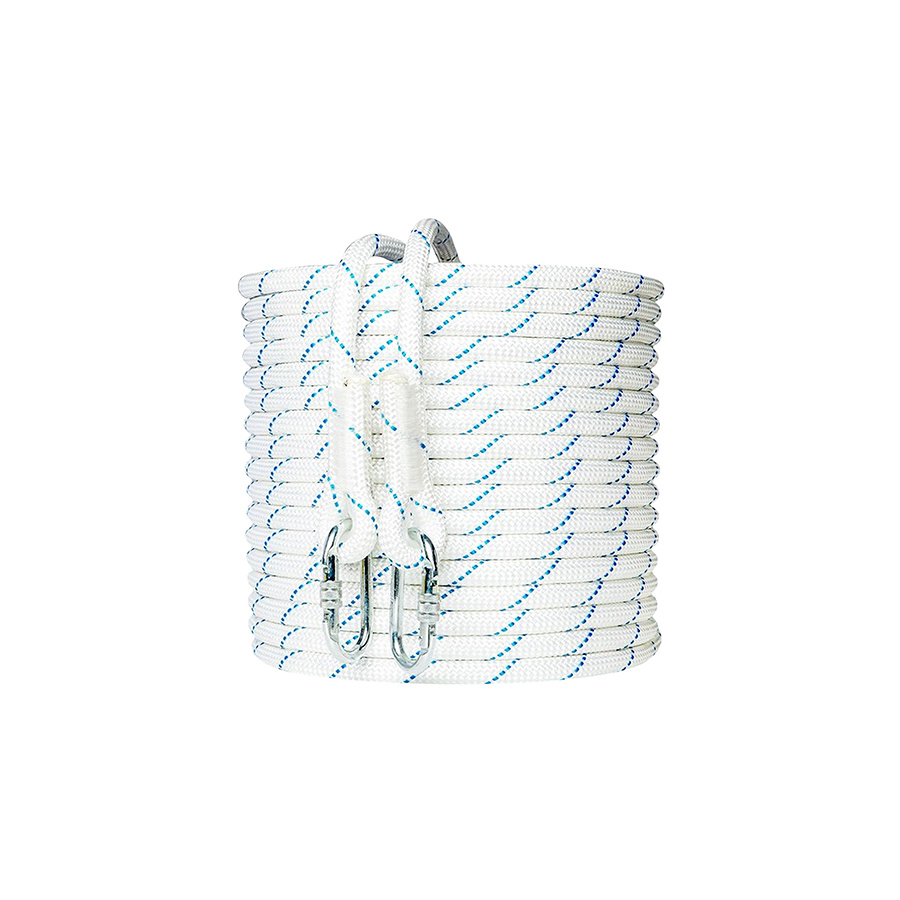

Fall Arrest Lifeline
