Airflow Hood
Airflow Hood
RAHD-A
Brand：
RUISCI
-
Choice
- RAHD-A-01,3.5kg
- RAHD-A-02,4kg
Inventory
400
隐藏域元素占位
Overview

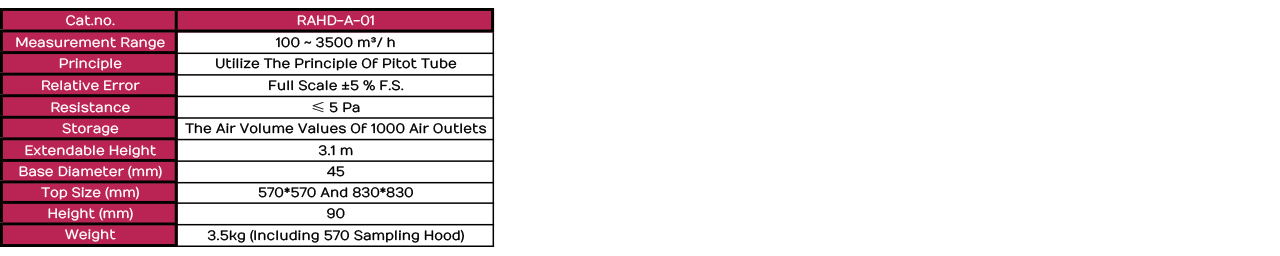

The RAHD - A - 01 airflow hood operates on the pitot tube principle to perform automated multi-point, multi-cycle air pressure detection, generating highly accurate, rapid, and user-friendly average airflow measurements (m³/h). This product finds extensive applications in industries like heating, ventilation, air - conditioning (HVAC), and purification technology. It is used for directly measuring the airflow at air outlets and within ducts, thereby facilitating the comprehensive management of airflow in centralized air - conditioning systems and the automatic control of parameters such as temperature, humidity, and cleanliness. To enhance the convenience of on site inspections for customers, it is equipped with a mobile support. The maximum elevation of the support is 2.2 m (where in the airflow meter itself accounts for 0.9 m), and the overall height can reach 3.1 m.

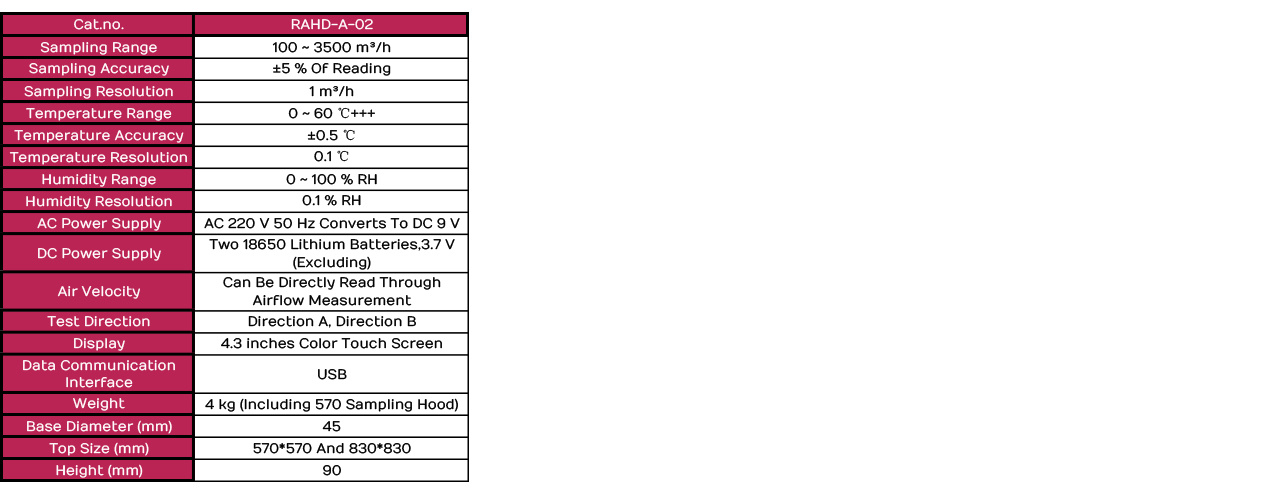

The RAHD - A - 02 airflow hood is equipped with a touch-screen interface and is capable of operating under both lithium-battery power and alternating-current (AC) power supply. The airflow meter is applicable for measuring airflow and temperature in ventilated areas such as air-conditioning ducts. After replacing the airflow hood with different-sized ones, it can be employed for any type of air-intake and air-exhaust outlets in ducts.
Features
RAHD-A-01
1. The device is equipped with a liquid crystal display (LCD) and a printing interface. The built - in battery enables continuous operation for up to 30 hours. Moreover, data will not be lost within 4 hours after a power outage.
2. Standard accessories include an adjustable bracket.
RAHD-A-02
1. It has a 4.3 inches color touch screen, an external wireless thermal printer, and can be operated through screen taps, handle buttons, or wireless remote control.
Technical data
1. Check the equipment: Ensure the hood body is intact and the instrument settings are correct.
2. Correct installation: Cover the air outlet tightly with the hood to prevent air leakage.
3. Wait for stability: Wait until the data stabilizes before reading the values.
4. Backpressure compensation: Backpressure compensation is required for high airflow measurements to ensure accuracy.
5. Avoid interference: Avoid interference during measurement and ensure a stable environment.
6. Safety precautions: Be cautious when measuring at heights to prevent collisions and liquids from splashing onto the instrument.
7. Cleaning and storage: Clean the instrument surface after use, place it in the instrument case, and store it in a dry and pressure-free environment.
8. RAHD-A-01 operating environment: 10 to 35 ℃, relative humidity: 10 to 70% RH. Do not measure corrosive gases.
9. RAHD-A-02 operating environment: 0 to 40 ℃, relative humidity: 10 to 90%; storage environment: -30 to 45 ℃, relative humidity: 0 to 90%.
keyword：
Airflow Hood
Previous：
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: Airflow Hood
- Subtitle: Airflow Hood
- Model: RAHD-A
- 全部型号: RAHD-A-01,RAHD-A-02,Airflow Hood
The RAHD - A - 01 airflow hood operates on the pitot tube principle. The RAHD - A - 02 airflow hood is equipped with a touch-screen interface.
The RAHD - A - 01 airflow hood operates on the pitot tube principle to perform automated multi-point, multi-cycle air pressure detection, generating highly accurate, rapid, and user-friendly average airflow measurements (m³/h). This product finds extensive applications in industries like heating, ventilation, air - conditioning (HVAC), and purification technology. It is used for directly measuring the airflow at air outlets and within ducts, thereby facilitating the comprehensive management of airflow in centralized air - conditioning systems and the automatic control of parameters such as temperature, humidity, and cleanliness. To enhance the convenience of on site inspections for customers, it is equipped with a mobile support. The maximum elevation of the support is 2.2 m (where in the airflow meter itself accounts for 0.9 m), and the overall height can reach 3.1 m.
The RAHD - A - 02 airflow hood is equipped with a touch-screen interface and is capable of operating under both lithium-battery power and alternating-current (AC) power supply. The airflow meter is applicable for measuring airflow and temperature in ventilated areas such as air-conditioning ducts. After replacing the airflow hood with different-sized ones, it can be employed for any type of air-intake and air-exhaust outlets in ducts.
-
RAHD-A-01
1. The device is equipped with a liquid crystal display (LCD) and a printing interface. The built - in battery enables continuous operation for up to 30 hours. Moreover, data will not be lost within 4 hours after a power outage.
2. Standard accessories include an adjustable bracket.RAHD-A-02
1. It has a 4.3 inches color touch screen, an external wireless thermal printer, and can be operated through screen taps, handle buttons, or wireless remote control. -
1. Check the equipment: Ensure the hood body is intact and the instrument settings are correct.
2. Correct installation: Cover the air outlet tightly with the hood to prevent air leakage.
3. Wait for stability: Wait until the data stabilizes before reading the values.
4. Backpressure compensation: Backpressure compensation is required for high airflow measurements to ensure accuracy.
5. Avoid interference: Avoid interference during measurement and ensure a stable environment.
6. Safety precautions: Be cautious when measuring at heights to prevent collisions and liquids from splashing onto the instrument.
7. Cleaning and storage: Clean the instrument surface after use, place it in the instrument case, and store it in a dry and pressure-free environment.
8. RAHD-A-01 operating environment: 10 to 35 ℃, relative humidity: 10 to 70% RH. Do not measure corrosive gases.
9. RAHD-A-02 operating environment: 0 to 40 ℃, relative humidity: 10 to 90%; storage environment: -30 to 45 ℃, relative humidity: 0 to 90%.
Q and A
Q
Distribution Modes:
A
Default Distribution Mode: EXW China Factory: After your payment is received, our customer service will contact you to confirm the pickup time and location once the goods are ready at the RUISCI China factory.
*Other options:
1.Carriage Paid To (CPT)
DO NOT PAY until you have contacted customer service to add shipping costs, as the default price is EXW China factory.
2.Delivered Duty Paid（DDP）
DO NOT PAY until you have ·contacted customer service to add Freight, insurance, taxes, customs clearance fees, and other miscellaneous expenses, as the default price is EXW China factory. Typically applies exclusively to small air cargo packages.
3. FOB China main port
DO NOT PAY until you have contacted customer service to add the inland charges and export declaration charges, as the default price is EXW China factory.
*** If you still need to consult other distribution modes or trade terms, please contact our customer service directly
Q
Payment methods:
A
1. On-line payment: Paypal
2. Off-line payment: Telegraphic Transfer (TT)
*All charges, except those incurred within our bank, are to be borne by the remitter. Insufficient payment will delay your shipment.
Download
There is currently no content to display
Related products
Price：
208
USD
Delivery：
30 Days

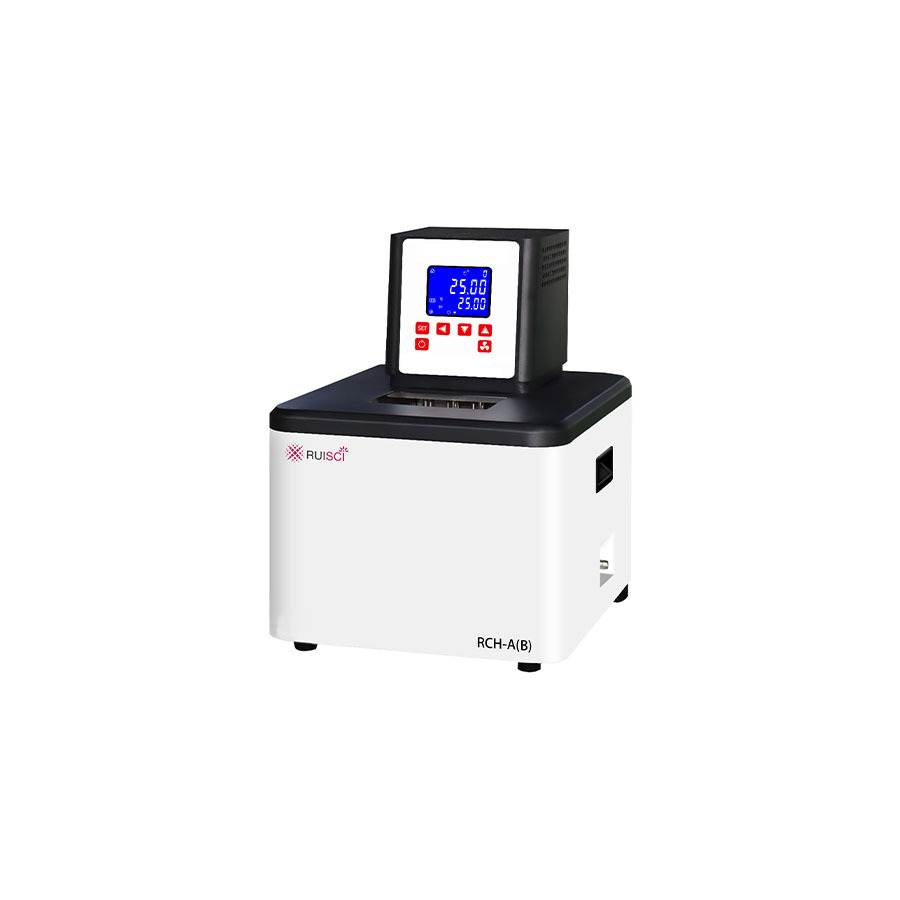

Combination Hot Bath Circulator
