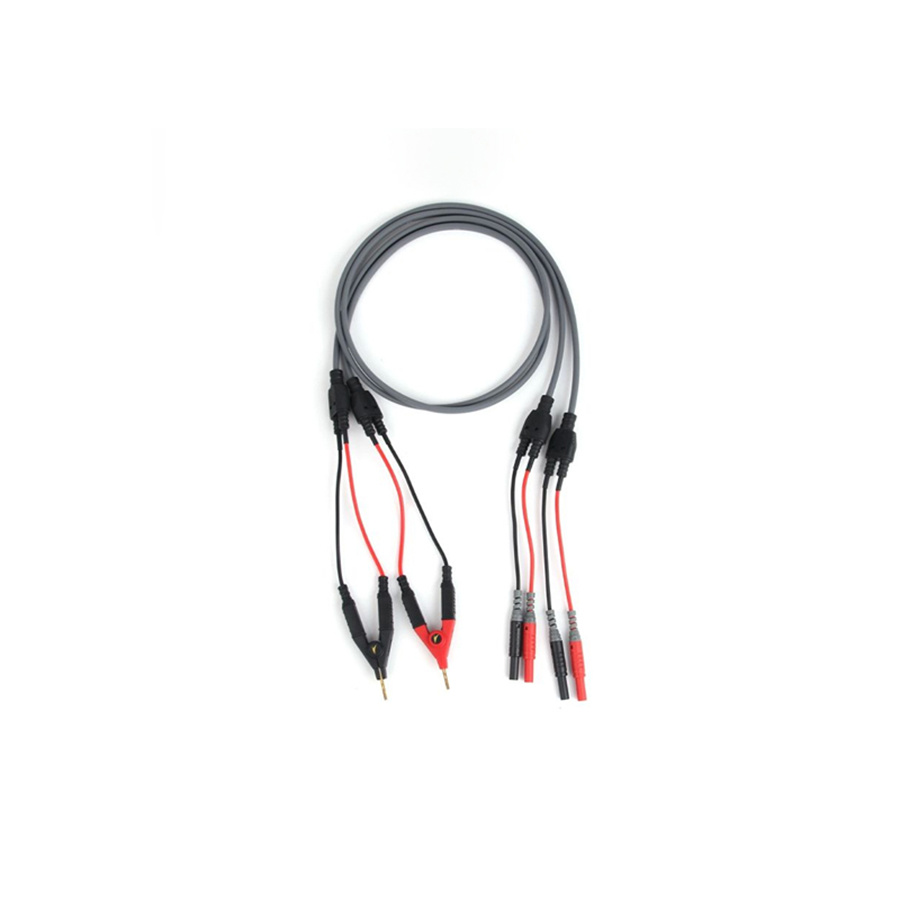

Four-Wire Low Resistance Test Clip
Brand：
RUISCI
-
Choice
- WL-A-08,0.8 m
- WL-A-10,1 m
- WL-A-15,1.5 m
- WL-A-20,2 m
- WL-A-30,3 m
- WL-A-50,5 m
Inventory
1722
隐藏域元素占位
Overview
The Four-Wire Low Resistance Test Clip is a testing tool designed based on the Kelvin four-wire method principle, mainly used for accurately measuring low resistance values.
Features
Features:
1. Low-resistance wires are adopted to ensure higher measurement accuracy.
2. Independent current and voltage paths.
3. Four-Wire Low Resistance Test Clip are suitable for various testing environments.
4. When measuring low resistance, the four-wire method can significantly reduce measurement errors caused by poor contact, wire resistance and environmental factors.
5. Four-Wire Low Resistance Test Clip can be used in conjunction with a variety of testing instruments.

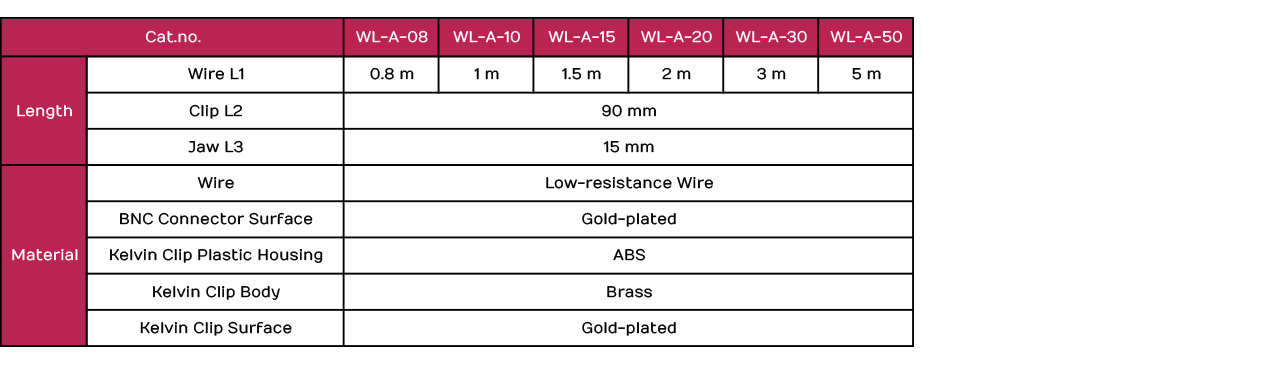

Technical data
Precautions:
1. Ensure good contact between the clips and the resistor under test. The clips should be firmly gripping the conductive terminals of the resistor to avoid excessive contact resistance due to poor contact, which could affect the measurement results.
2. Before use, check whether the contact surfaces of the clips are clean. If there is contamination or oxidation on the contact surfaces of the clips, wipe them clean with alcohol or a specialized cleaner to reduce contact resistance.
3. Avoid strong magnetic and electric fields in the testing environment to prevent interference signals from affecting the measurement results.
4. Before using a low-resistance tester, make sure the equipment has been calibrated and is within the validity period. Regular calibration can ensure the measurement accuracy of the tester.
5. During the measurement process, avoid touching the test leads and the resistor under test with your hands to prevent the human body resistance from interfering with the measurement results.
6. The test equipment and the resistor under test should be reliably grounded to prevent the accumulation of static electricity and leakage accidents.
keyword：
Four - Wire Low - Resistance Measurement Clamp
4-Wire Kelvin Test Clips
Precision 4-Wire Test Leads
Gold-Plated 4-Wire Clips for Multimeter
Previous：
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: Four-Wire Low Resistance Test Clip
- 全部型号: Four - Wire Low - Resistance Measurement Clamp. 4-Wire Kelvin Test Clips. Precision 4-Wire Test Leads. Gold-Plated 4-Wire Clips for Multimeter,WL-A-08,WL-A-10,WL-A-15,WL-A-20,WL-A-30,WL-A-50
The Four-Wire Low Resistance Test Clip is a testing tool designed based on the Kelvin four-wire method principle, mainly used for accurately measuring low resistance values.
The Four-Wire Low Resistance Test Clip is a testing tool designed based on the Kelvin four-wire method principle, mainly used for accurately measuring low resistance values.
-
Features:
1. Low-resistance wires are adopted to ensure higher measurement accuracy.
2. Independent current and voltage paths.
3. Four-Wire Low Resistance Test Clip are suitable for various testing environments.
4. When measuring low resistance, the four-wire method can significantly reduce measurement errors caused by poor contact, wire resistance and environmental factors.
5. Four-Wire Low Resistance Test Clip can be used in conjunction with a variety of testing instruments. -
Precautions:
1. Ensure good contact between the clips and the resistor under test. The clips should be firmly gripping the conductive terminals of the resistor to avoid excessive contact resistance due to poor contact, which could affect the measurement results.
2. Before use, check whether the contact surfaces of the clips are clean. If there is contamination or oxidation on the contact surfaces of the clips, wipe them clean with alcohol or a specialized cleaner to reduce contact resistance.
3. Avoid strong magnetic and electric fields in the testing environment to prevent interference signals from affecting the measurement results.
4. Before using a low-resistance tester, make sure the equipment has been calibrated and is within the validity period. Regular calibration can ensure the measurement accuracy of the tester.
5. During the measurement process, avoid touching the test leads and the resistor under test with your hands to prevent the human body resistance from interfering with the measurement results.
6. The test equipment and the resistor under test should be reliably grounded to prevent the accumulation of static electricity and leakage accidents.
