LCR Tester
LCR Tester
RLCR-A,RLCR-B
Brand：
RUISCI
-
Choice
- RLCR-A-01,10 Points
- RLCR-A-02,12 Points
- RLCR-A-03,16 Points
- RLCR-A-04,10KHz~10 KHz
- RLCR-A-05,10KHz~20 KHz
- RLCR-A-06,10KHz~1000 KHz
- RLCR-B-01,10Hz~100Hz
- RLCR-B-02,10Hz~200KHz
- RLCR-B-03,10Hz~300KHz
- RLCR-B-04,10Hz~500KHz
- RLCR-B-05,10Hz~1MHz
Inventory
2838
隐藏域元素占位
Overview
LCR Tester, an electronic measuring instrument, is employed to measure the parameters of components including inductance (L), capacitance (C), and resistance (R). It finds extensive applications in the characterization analysis, quality inspection, research and development, as well as the production processes of electronic components.
Features
Characteristics:
1. Equipped with a TFT display screen, enabling clear visualization of all data.
2. Incorporates an adjustable stand design. This allows for the adjustment of the stand angle according to the specific requirements of users, thus facilitating the observation and recording of data.
3. The RLCR - B series integrates multiple functions, including automatic level adjustment, test signal generation, adjustment functions, and list scanning, all within a single device.
4. Features user-friendly operation. Users can accomplish a variety of measurement tasks through straightforward key operations.
5. The RLCR - A series has the ability to store measurement data, providing convenience for users in data management and analysis.

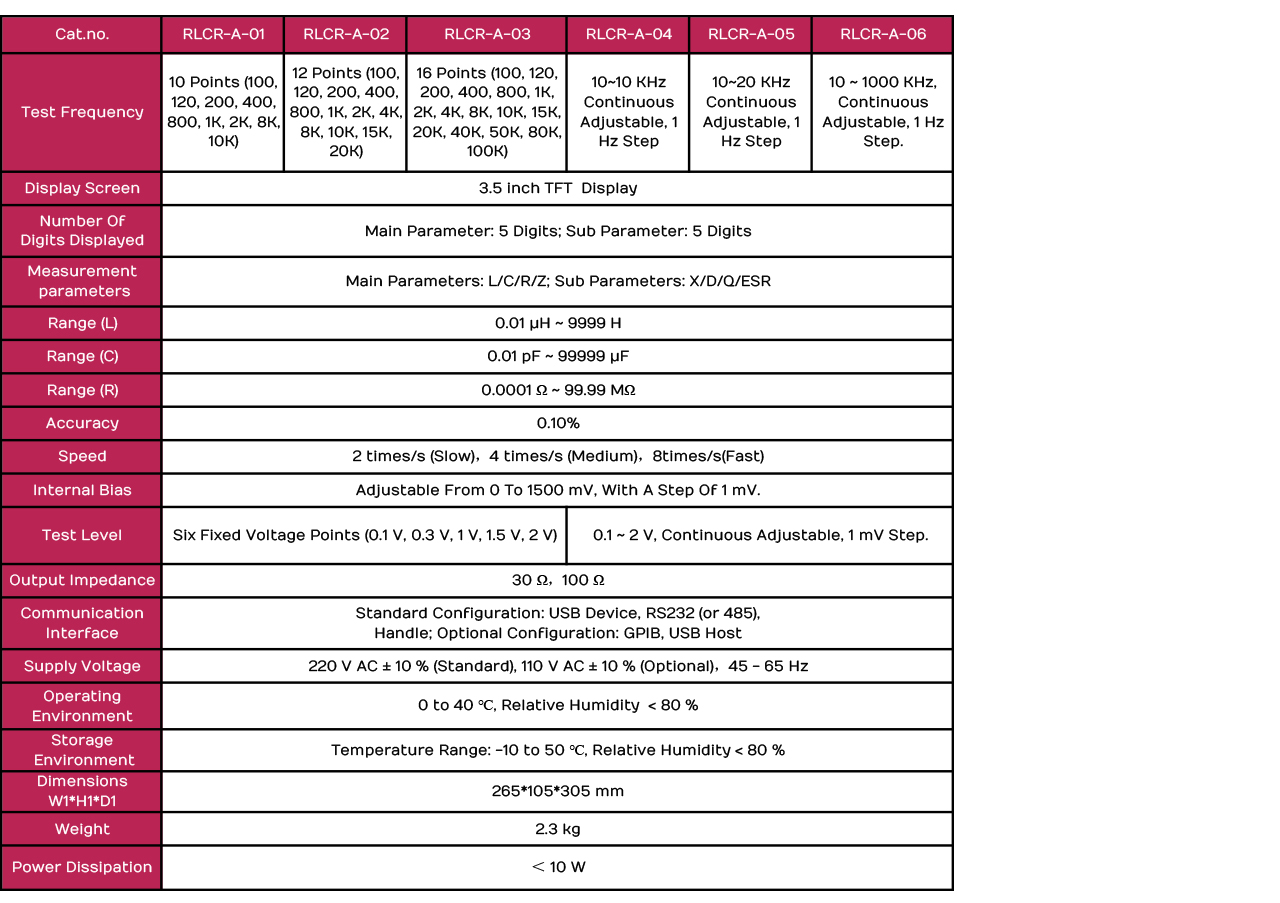

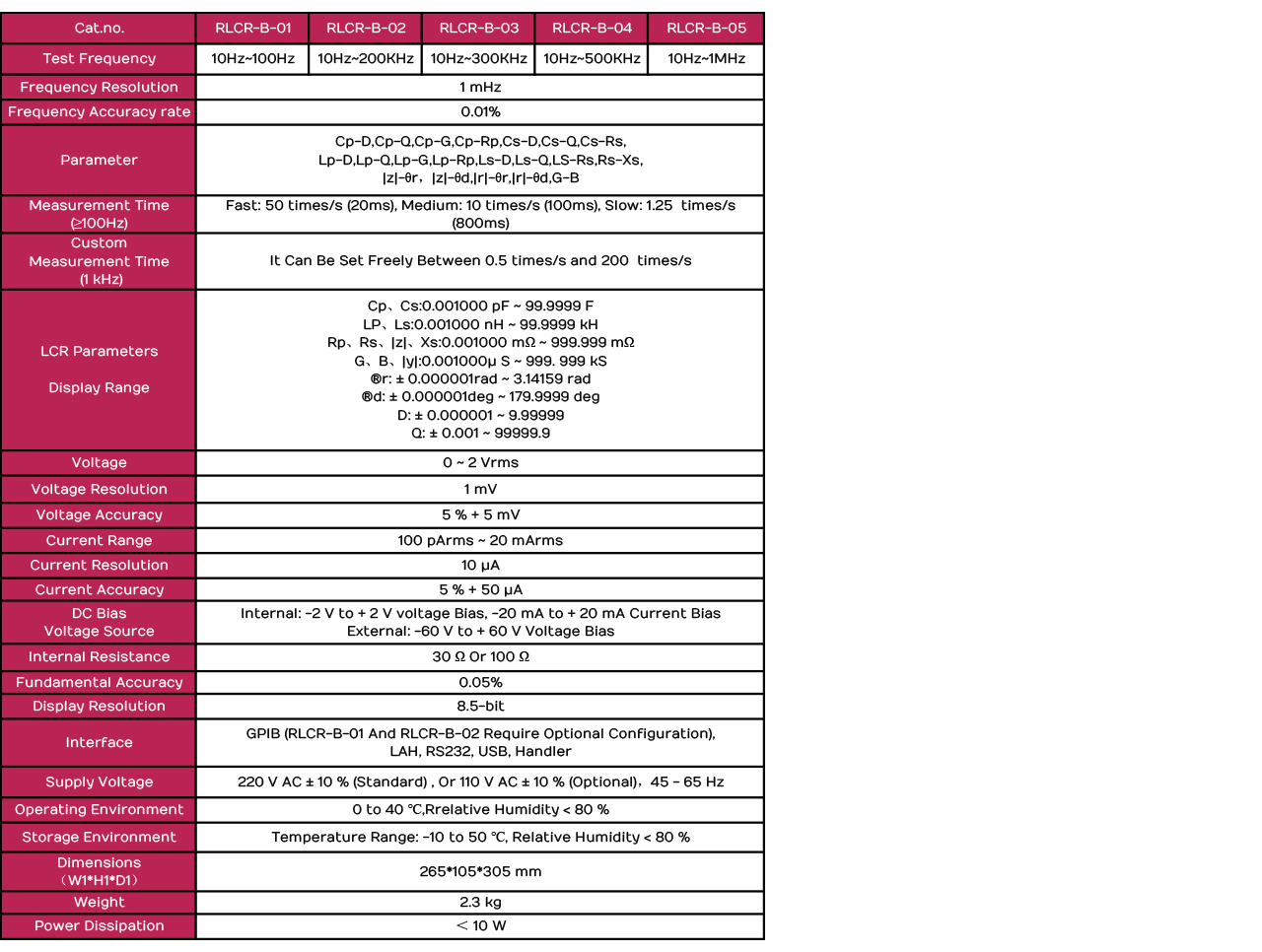

Technical data
Precautions:
1. Minimize exposure to strong electromagnetic interference. The instrument should be positioned on a stable workbench to mitigate the impact of vibrations on test results.
2. Verify the integrity of the tester's power cord and connection cables, and ensure that the power switch is in the off position. Inspect the test fixtures or probes for cleanliness to prevent poor electrical contact resulting from oxidation.
3. Insert components into the test fixtures accurately to guarantee optimal pin contact. This is crucial for minimizing the influence of parasitic capacitance and contact resistance on the test outcomes.
4. Connecting or disconnecting components while the power is on is strictly prohibited, particularly in high-voltage or high-current scenarios.
5. Prior to capacitance measurement, it is essential to discharge the capacitor to safeguard the instrument from potential damage caused by residual electrical charges.
6. Routinely clean the instrument's surface to prevent heat dissipation issues that may arise from dust and oil accumulation.
7. Refrain from prolonged exposure of the instrument to humid or corrosive environments.
8. In the event of extended periods of non-use, it is advisable to power on the instrument once a month to prevent the premature aging of internal circuitry.
keyword：
LCR Meter
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: LCR Tester
- Subtitle: LCR Tester
- Model: RLCR-A,RLCR-B
- 全部型号: LCR Meter,RLCR-A-01,RLCR-A-02,RLCR-A-03,RLCR-A-04,RLCR-A-05,RLCR-A-06,RLCR-B-01,RLCR-B-02,RLCR-B-03,RLCR-B-04,RLCR-B-05
LCR Tester, an electronic measuring instrument, is employed to measure the parameters of components including inductance (L), capacitance (C), and resistance (R).
LCR Tester, an electronic measuring instrument, is employed to measure the parameters of components including inductance (L), capacitance (C), and resistance (R). It finds extensive applications in the characterization analysis, quality inspection, research and development, as well as the production processes of electronic components.
-
Characteristics:
1. Equipped with a TFT display screen, enabling clear visualization of all data.
2. Incorporates an adjustable stand design. This allows for the adjustment of the stand angle according to the specific requirements of users, thus facilitating the observation and recording of data.
3. The RLCR - B series integrates multiple functions, including automatic level adjustment, test signal generation, adjustment functions, and list scanning, all within a single device.
4. Features user-friendly operation. Users can accomplish a variety of measurement tasks through straightforward key operations.
5. The RLCR - A series has the ability to store measurement data, providing convenience for users in data management and analysis. -
Precautions:
1. Minimize exposure to strong electromagnetic interference. The instrument should be positioned on a stable workbench to mitigate the impact of vibrations on test results.
2. Verify the integrity of the tester's power cord and connection cables, and ensure that the power switch is in the off position. Inspect the test fixtures or probes for cleanliness to prevent poor electrical contact resulting from oxidation.
3. Insert components into the test fixtures accurately to guarantee optimal pin contact. This is crucial for minimizing the influence of parasitic capacitance and contact resistance on the test outcomes.
4. Connecting or disconnecting components while the power is on is strictly prohibited, particularly in high-voltage or high-current scenarios.
5. Prior to capacitance measurement, it is essential to discharge the capacitor to safeguard the instrument from potential damage caused by residual electrical charges.
6. Routinely clean the instrument's surface to prevent heat dissipation issues that may arise from dust and oil accumulation.
7. Refrain from prolonged exposure of the instrument to humid or corrosive environments.
8. In the event of extended periods of non-use, it is advisable to power on the instrument once a month to prevent the premature aging of internal circuitry.
Q and A
Q
Distribution Modes:
A
Default Distribution Mode: EXW China Factory: After your payment is received, our customer service will contact you to confirm the pickup time and location once the goods are ready at the RUISCI China factory.
*Other options:
1.Carriage Paid To (CPT)
DO NOT PAY until you have contacted customer service to add shipping costs, as the default price is EXW China factory.
2.Delivered Duty Paid（DDP）
DO NOT PAY until you have ·contacted customer service to add Freight, insurance, taxes, customs clearance fees, and other miscellaneous expenses, as the default price is EXW China factory. Typically applies exclusively to small air cargo packages.
3. FOB China main port
DO NOT PAY until you have contacted customer service to add the inland charges and export declaration charges, as the default price is EXW China factory.
*** If you still need to consult other distribution modes or trade terms, please contact our customer service directly
Q
Payment methods:
A
1. On-line payment: Paypal
2. Off-line payment: Telegraphic Transfer (TT)
*All charges, except those incurred within our bank, are to be borne by the remitter. Insufficient payment will delay your shipment.
Download
There is currently no content to display
Related products
Price：
475
USD
Delivery：
30 Days
Price：
338
USD
Delivery：
30 Days
Price：
1045
USD
Delivery：
30 Days
Price：
563
USD
Delivery：
30 Days

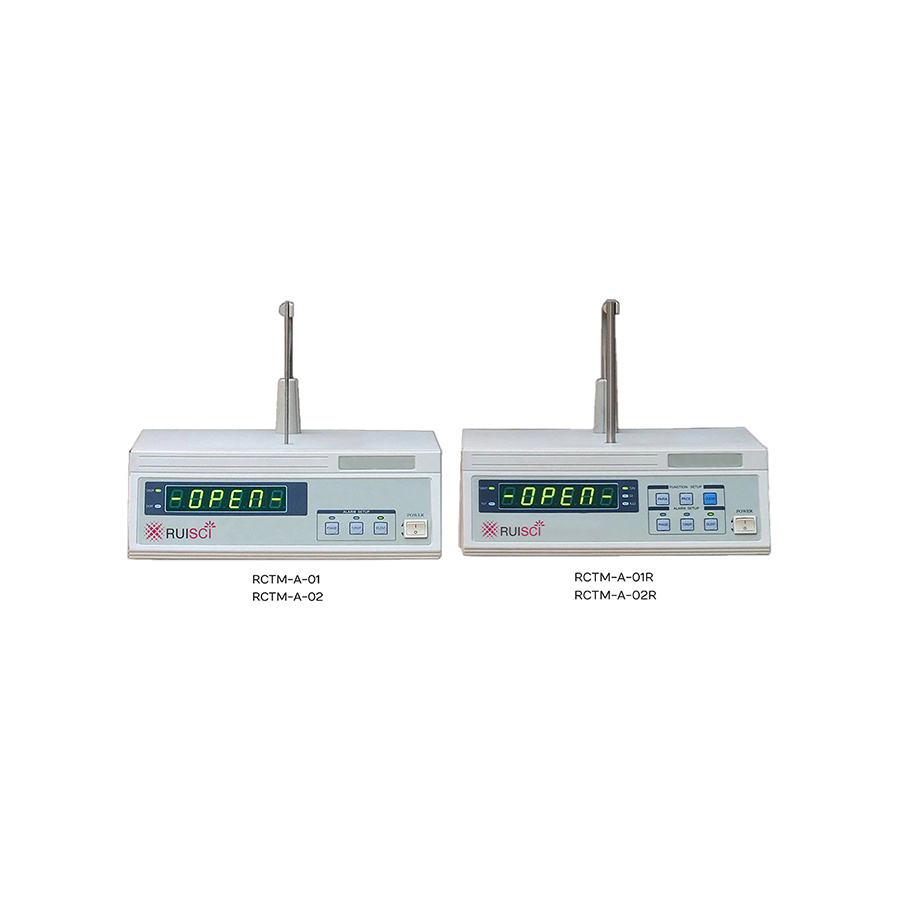

Coil Turns Measuring Instrument
