Portable Signal Generator

Portable Signal Generator

RPSG-A


RUISCI

Brand:

RUISCI


USD

75

Untaxed

EXW factory


  • Choice
    • RPSG-A-01,Basic
    • RPSG-A-01P,Professional
    • RPSG-A-01A,Advanced
    • RPSG-A-01R,Master Grade
Quantity
-
+

Inventory

792

隐藏域元素占位


Portable Signal Generator is a portable electronic test instrument capable of generating electrical signals of various frequencies, amplitudes, and waveforms, widely used for testing, debugging, and calibrating electronic equipment.


Characteristics:
1. Precision components with SMT conformal coating ensure superior water - proof and moisture - proof stability.
2. The compact body supports multi-signal compatibility.
3. Rigorous calibration ensures accurate measurement in every instrument.
4. It can swiftly generates test signals to isolate faults and improve maintenance efficiency.
5. Battery-powered operation eliminates field power supply issues.

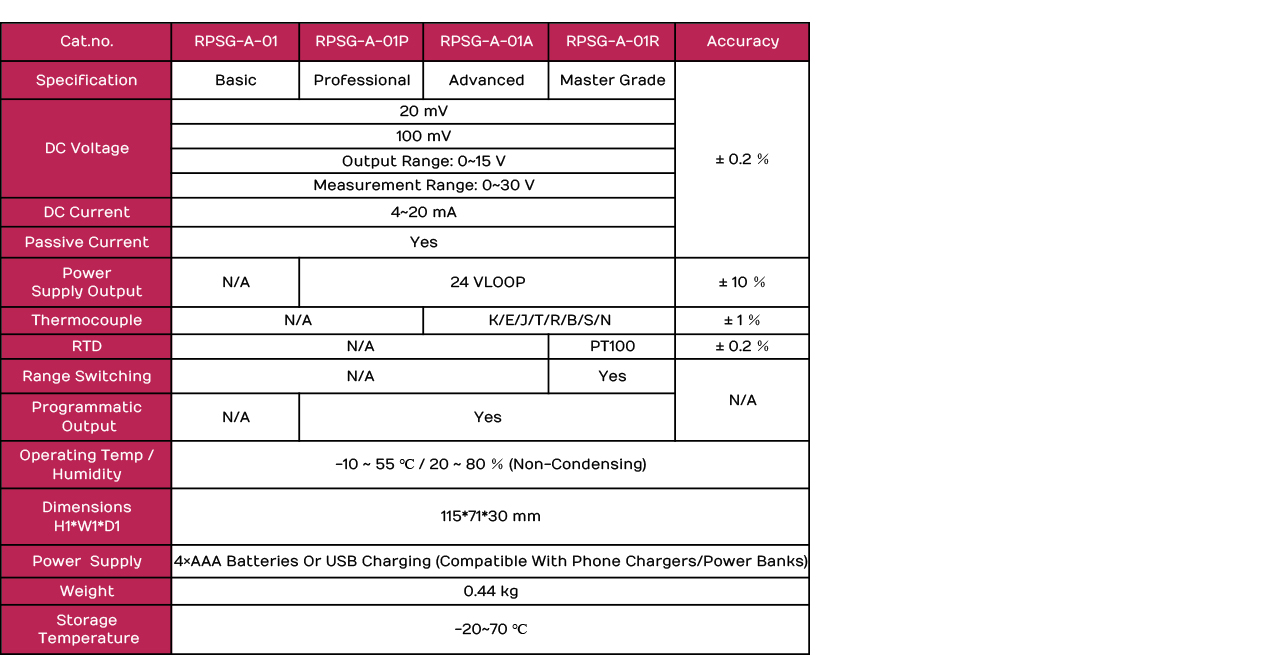

Technical data

Precautions:

1. Inspect the exterior of the device for any damage, with particular attention to the connection ports and the display screen. Ensure the battery is sufficiently charged or a compatible power supply is properly connected.
2. Ensure the device is operated within the specified environmental conditions.
3. Ensure proper grounding of the device to prevent electric shock and equipment damage.
4. When switching signal types, ensure that all test leads (such as the red and black test leads) are disconnected. Connect the black test lead first, followed by the red one; when terminating the signal, disconnect the red test lead first and then the black one.
5. Do not apply any voltage signal between the red and black test leads, unless this function is supported by the device.
6. Use only the device's specified power adapter or batteries. Refrain from using AC/DC power supplies during thunderstorm weather.
7. During the operation, avoid excessive tugging of the connecting cables and impact on the device.
8. Calibrate the device regularly to ensure the accuracy of test results.
9. Wipe the surface of the device with a clean and soft cotton cloth. Avoid using cleaning agents containing corrosive substances.
10. Store the device in a dry and well-ventilated environment to prevent moisture ingress and dust accumulation.
11. Remove batteries during prolonged storage to prevent leakage damage to the device.

keyword:

Handheld Signal Generator

Mini Functional Signal Generator

Handheld Multifunction Signal Generator

Previous:

Next:

  • 产品描述
  • 概要参数
  • 技术参数
    • Brand: RUISCI
    • Commodity name: Portable Signal Generator
    • Subtitle: Portable Signal Generator
    • Model: RPSG-A
    • 全部型号: Handheld Signal Generator,Mini Functional Signal Generator,Handheld Multifunction Signal Generator,RPSG-A-01,RPSG-A-01P,RPSG-A-01A,RPSG-A-01R

    Portable Signal Generator is a portable electronic test instrument capable of generating electrical signals of various frequencies, amplitudes, and waveforms, widely used for testing, debugging, and calibrating electronic equipment.

    Portable Signal Generator is a portable electronic test instrument capable of generating electrical signals of various frequencies, amplitudes, and waveforms, widely used for testing, debugging, and calibrating electronic equipment.

  • Characteristics:
    1. Precision components with SMT conformal coating ensure superior water - proof and moisture - proof stability.
    2. The compact body supports multi-signal compatibility.
    3. Rigorous calibration ensures accurate measurement in every instrument.
    4. It can swiftly generates test signals to isolate faults and improve maintenance efficiency.
    5. Battery-powered operation eliminates field power supply issues.

  • Precautions:

    1. Inspect the exterior of the device for any damage, with particular attention to the connection ports and the display screen. Ensure the battery is sufficiently charged or a compatible power supply is properly connected.
    2. Ensure the device is operated within the specified environmental conditions.
    3. Ensure proper grounding of the device to prevent electric shock and equipment damage.
    4. When switching signal types, ensure that all test leads (such as the red and black test leads) are disconnected. Connect the black test lead first, followed by the red one; when terminating the signal, disconnect the red test lead first and then the black one.
    5. Do not apply any voltage signal between the red and black test leads, unless this function is supported by the device.
    6. Use only the device's specified power adapter or batteries. Refrain from using AC/DC power supplies during thunderstorm weather.
    7. During the operation, avoid excessive tugging of the connecting cables and impact on the device.
    8. Calibrate the device regularly to ensure the accuracy of test results.
    9. Wipe the surface of the device with a clean and soft cotton cloth. Avoid using cleaning agents containing corrosive substances.
    10. Store the device in a dry and well-ventilated environment to prevent moisture ingress and dust accumulation.
    11. Remove batteries during prolonged storage to prevent leakage damage to the device.

Q and A


Q

Distribution Modes:

A

Default Distribution Mode: EXW China Factory: After your payment is received, our customer service will contact you to confirm the pickup time and location once the goods are ready at the RUISCI China factory.

*Other options:

1.Carriage Paid To (CPT)

DO NOT PAY until you have contacted customer service to add shipping costs, as the default price is EXW China factory.

2.Delivered Duty Paid(DDP)

DO NOT PAY until you have ·contacted customer service to add Freight, insurance, taxes, customs clearance fees, and other miscellaneous expenses, as the default price is EXW China factory. Typically applies exclusively to small air cargo packages.

3. FOB China main port
DO NOT PAY until you have contacted customer service to add the inland charges and export declaration charges, as the default price is EXW China factory.



*** If you still need to consult other distribution modes or trade terms, please contact our customer service directly


Q

Payment methods:

A

1. On-line payment: Paypal

2. Off-line payment: Telegraphic Transfer (TT)



*All charges, except those incurred within our bank, are to be borne by the remitter.  Insufficient payment will delay your shipment.
