DC Regulated Power Supply,2
DC Regulated Power Supply
RDCR-F
Brand：
RUISCI
-
Choice
- RDCR-F-01,0~15V,0~30A,450W
- RDCR-F-02,0~15V,0~50A,750W
- RDCR-F-03,0~15V,0~60A,900W
- RDCR-F-04,0~30V,0~20A,600W
- RDCR-F-05,0~30V,0~30A,900W
- RDCR-F-06,0~30V,0~50A,1500W
- RDCR-F-07,0~30V,0~60A,1800W
- RDCR-F-08,0~50V,0~10A,500W
- RDCR-F-09,0~50V,0~20A,1000W
- RDCR-F-10,0~50V,0~30A,1500W
- RDCR-F-11,0~60V,0~10A,600W
- RDCR-F-12,0~60V,0~20A,1200W
- RDCR-F-13,0~60V,0~30A,1800W
- RDCR-F-14,0~100V,0~5A,500W
- RDCR-F-15,0~100V,0~10A,1000W
- RDCR-F-16,0~200V,0~5A,1000W
- RDCR-F-17,0~300V,0~5A,1500W
- RDCR-F-01B,0~60V,0~50A,3000W
- RDCR-F-02B,0~80V,0~20A,1600W
- RDCR-F-03B,0~80V,0~50A,4000W
Inventory
5480
隐藏域元素占位
Overview
DC regulated power supply is a power supply apparatus capable of delivering a stable DC voltage output. Through its internal circuit design, it transforms the input alternating current (AC) or unstable direct current (DC) into a stable and accurate DC voltage outpu to meet the power supply stability requirements of electronic devices.
Features
1. Automatic transition between the constant voltage and constant current state.
2. Protections against overvoltage, overtemperature, and short - circuit current limitation.
3. Intelligent temperature control with a forced air cooling fan.
4. Precise adjustment via an encoded knob.
5. An LED high - definition display panel.
6. Exhibits low ripple and low noise characteristics.
7. Can operate under full - load conditions without equipment burnout.
8. Demonstrates high stability, high efficiency, and is free from high - frequency radiation interference.

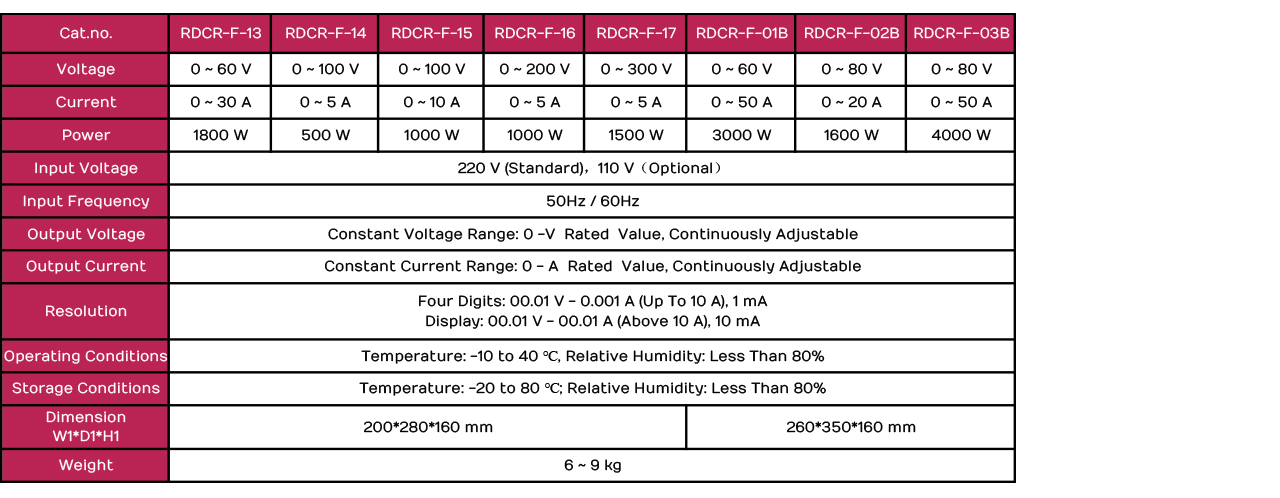

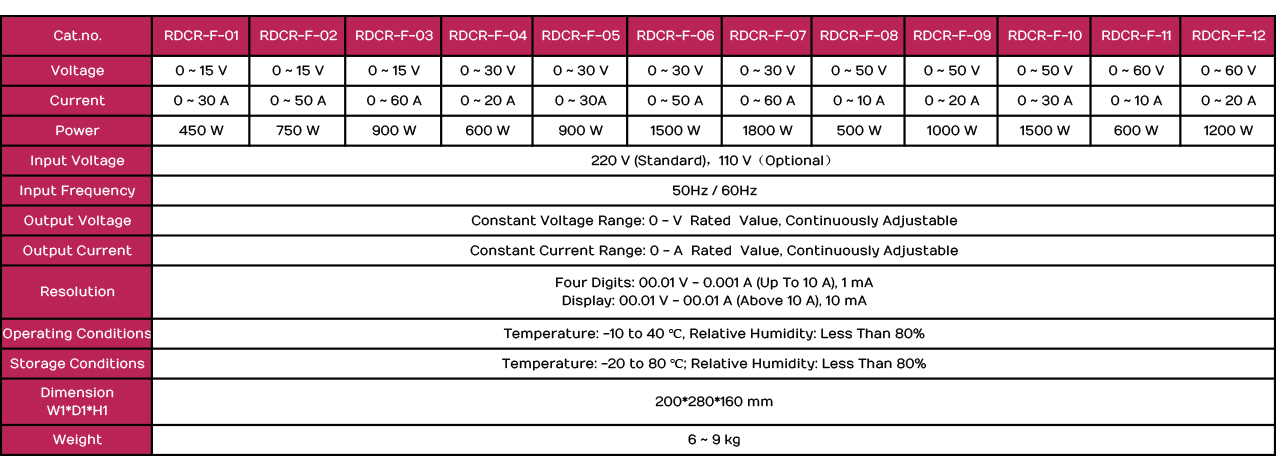

Technical data
Precautions:
1. Before connecting the load, adjust the output voltage and current to their minimum values.
2. Adjust the output voltage and current gradually in accordance with the requirements of the load.
3. Do not position the regulated power supply in an enclosed environment keep some space around it for air circulation.
4. Rigorously control the output current so that it does not exceed the rated current of the power supply.
5. If a short circuit is found between the output terminals during operation, the power supply should be cut off immediately.
6. Try to avoid using the DC regulated power supply in an environment where the grid voltage fluctuates significantly.
7. After use, first adjust the output voltage and current to their minimum values, and then turn off the power switch.
8. Regularly clean the exterior casing and cooling vents of the DC regulated power supply.
keyword：
Adjustable Regulated Power Supply
Previous：
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: DC Regulated Power Supply,2
- Subtitle: DC Regulated Power Supply
- Model: RDCR-F
- 全部型号: Adjustable Regulated Power Supply,RDCR-F-01,RDCR-F-02,RDCR-F-03,RDCR-F-04,RDCR-F-05,RDCR-F-06,RDCR-F-07,RDCR-F-08,RDCR-F-09,RDCR-F-10,RDCR-F-11,RDCR-F-12,RDCR-F-13,RDCR-F-14,RDCR-F-15,RDCR-F-16,RDCR-F-17,RDCR-F-01B,RDCR-F-02B,RDCR-F-03B
DC regulated power supply is a power supply apparatus capable of delivering a stable DC voltage output.
DC regulated power supply is a power supply apparatus capable of delivering a stable DC voltage output. Through its internal circuit design, it transforms the input alternating current (AC) or unstable direct current (DC) into a stable and accurate DC voltage outpu to meet the power supply stability requirements of electronic devices.
-
1. Automatic transition between the constant voltage and constant current state.
2. Protections against overvoltage, overtemperature, and short - circuit current limitation.
3. Intelligent temperature control with a forced air cooling fan.
4. Precise adjustment via an encoded knob.
5. An LED high - definition display panel.
6. Exhibits low ripple and low noise characteristics.
7. Can operate under full - load conditions without equipment burnout.
8. Demonstrates high stability, high efficiency, and is free from high - frequency radiation interference. -
Precautions:
1. Before connecting the load, adjust the output voltage and current to their minimum values.
2. Adjust the output voltage and current gradually in accordance with the requirements of the load.
3. Do not position the regulated power supply in an enclosed environment keep some space around it for air circulation.
4. Rigorously control the output current so that it does not exceed the rated current of the power supply.
5. If a short circuit is found between the output terminals during operation, the power supply should be cut off immediately.
6. Try to avoid using the DC regulated power supply in an environment where the grid voltage fluctuates significantly.
7. After use, first adjust the output voltage and current to their minimum values, and then turn off the power switch.
8. Regularly clean the exterior casing and cooling vents of the DC regulated power supply.
Q and A
Q
Distribution Modes:
A
Default Distribution Mode: EXW China Factory: After your payment is received, our customer service will contact you to confirm the pickup time and location once the goods are ready at the RUISCI China factory.
*Other options:
1.Carriage Paid To (CPT)
DO NOT PAY until you have contacted customer service to add shipping costs, as the default price is EXW China factory.
2.Delivered Duty Paid（DDP）
DO NOT PAY until you have ·contacted customer service to add Freight, insurance, taxes, customs clearance fees, and other miscellaneous expenses, as the default price is EXW China factory. Typically applies exclusively to small air cargo packages.
3. FOB China main port
DO NOT PAY until you have contacted customer service to add the inland charges and export declaration charges, as the default price is EXW China factory.
*** If you still need to consult other distribution modes or trade terms, please contact our customer service directly
Q
Payment methods:
A
1. On-line payment: Paypal
2. Off-line payment: Telegraphic Transfer (TT)
*All charges, except those incurred within our bank, are to be borne by the remitter. Insufficient payment will delay your shipment.
