High Temperature Ceramic Heating Rope
High Temperature Ceramic Heating Rope
TM-A
Brand：
RUISCI
-
Choice
- TM-A-03,2.5m
- TM-A-05,5m
- TM-A-06,6m
- TM-A-08,8m
- TM-A-10,10m
- TM-A-15,15m
- TM-A-20,20m
- TM-A-30,30m
Inventory
2144
隐藏域元素占位
Overview
High Temperature Ceramic Heating Rope is a heating device composed of high-temperature resistant ceramic materials and resistance wires, widely used in industrial fields for preheating and post-welding treatment of various metal components, as well as auxiliary heating of pipes, containers, etc.
Features
1. It uses high-strength, high-thermal-radiation alumina ceramic components as insulating materials.
2. The heating element is made of 2080 nickel-chromium wire, which will not become brittle after long-term use and cooling.
3. It features high temperature, fast heating, high efficiency, uniform heating, long service life, and large contact area.
4. It adopts quick connectors for convenient installation and use.
5. It is flexible and highly flexible.

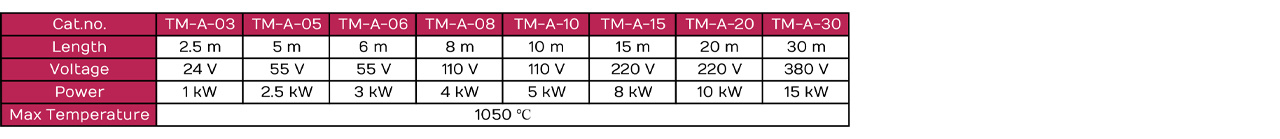

Technical data
Precautions:
1. Before installation, check whether the installation position and the specification of the high temperature ceramic heating rope and whether the operating voltage is the same.
2. The high temperature ceramic heating rope should be closely attached to the heated object, and the surface of the heated object should be flat and intact, without unevenness or overlapping.
3. Avoid hitting or colliding with hard objects to prevent ceramic tile fractures and exposure of alloy resistance wires, which may affect the service life.
4. If a blackened surface is found after use, it indicates an imbalance between heating and heat dissipation of the heated object. Adjust it in time to prevent burning through.
5. Do not come into contact with oil, water, or plastic particles during storage and installation to prevent electric leakage.
6. Regularly check whether the wire connections are loose or damaged to ensure normal operation.
keyword：
High Temperature Ceramic Heating Rope
Temperature Controlled Rope
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: High Temperature Ceramic Heating Rope
- Subtitle: High Temperature Ceramic Heating Rope
- Model: TM-A
- 全部型号: TM-A-03,TM-A-05,TM-A-06,TM-A-08,TM-A-10,TM-A-15,TM-A-20,TM-A-30,High Temperature Ceramic Heating Rope, Temperature Controlled Rope
High Temperature Ceramic Heating Rope is a heating device composed of high-temperature resistant ceramic materials and resistance wires.
High Temperature Ceramic Heating Rope is a heating device composed of high-temperature resistant ceramic materials and resistance wires, widely used in industrial fields for preheating and post-welding treatment of various metal components, as well as auxiliary heating of pipes, containers, etc.
-
1. It uses high-strength, high-thermal-radiation alumina ceramic components as insulating materials.
2. The heating element is made of 2080 nickel-chromium wire, which will not become brittle after long-term use and cooling.
3. It features high temperature, fast heating, high efficiency, uniform heating, long service life, and large contact area.
4. It adopts quick connectors for convenient installation and use.
5. It is flexible and highly flexible. -
Precautions:
1. Before installation, check whether the installation position and the specification of the high temperature ceramic heating rope and whether the operating voltage is the same.
2. The high temperature ceramic heating rope should be closely attached to the heated object, and the surface of the heated object should be flat and intact, without unevenness or overlapping.
3. Avoid hitting or colliding with hard objects to prevent ceramic tile fractures and exposure of alloy resistance wires, which may affect the service life.
4. If a blackened surface is found after use, it indicates an imbalance between heating and heat dissipation of the heated object. Adjust it in time to prevent burning through.
5. Do not come into contact with oil, water, or plastic particles during storage and installation to prevent electric leakage.
6. Regularly check whether the wire connections are loose or damaged to ensure normal operation.
