Platinum Resistance Thermometers
Platinum Resistance Thermometers
RPRT-A,RPRT-B
Brand：
RUISCI
-
Choice
- RPRT-A-01,1,No Recording Function
- RPRT-A-02,1,Recording Function
- RPRT-A-03,1,Recording Function,0.001℃
- RPRT-B-01,2,No Recording
- RPRT-B-02,2,Recording Function
- RPRT-B-03,2,Recording Function,0.001℃
Inventory
1200
隐藏域元素占位
Overview
The platinum resistance thermometer employs pulse measurement technology, which reduces the power consumption of the instrument and minimizes the heat generated by the probe itself. Building upon this, the device incorporates the high-precision circuit principle and ultra-accurate reference source, along with precise factory calibration, achieving an exceptional resolution of 0.001℃ and the factory accuracy of ±(0.05%|t| + 0.05)℃. Its applications span laboratory physical quantity measurement and recording; food, medicine, household; industry; aerospace; cold chain transportation; automotive market; metalworking; livestock farming; and supermarkets applications.
Features
1. Dual channels (RPRT-A-01, RPRT-A-02, RPRT-A-03).
2. Supports both PT100 and PT1000 probes simultaneously.
3. Maximum resolution of 0.001°C.
4. Factory accuracy up to ±(0.05%|t| + 0.05)°C.
5. After point calibration, the accuracy can reach ±0.015°C.
6. Measuring range: -200°C to +800°C.
7. Capable of displaying temperature difference between two channels (RPRT-A-01, RPRT-A-02, RPRT-A-03).
8. Temperature curve graph.
9. Temperature over-limit alarm function.
10. Displays maximum, minimum and average values.
11. Sampling rate: 1 time per second.
12. Can record 20,000 groups of temperature data (recording version).
15. Supports multiple power supply schemes.
16. Large dot matrix LCD screen with high-quality backlight.
17. Real-time data viewing and export (RPRT-A-03), (RPRT-B-03).
18.This probe can only be used on this product.

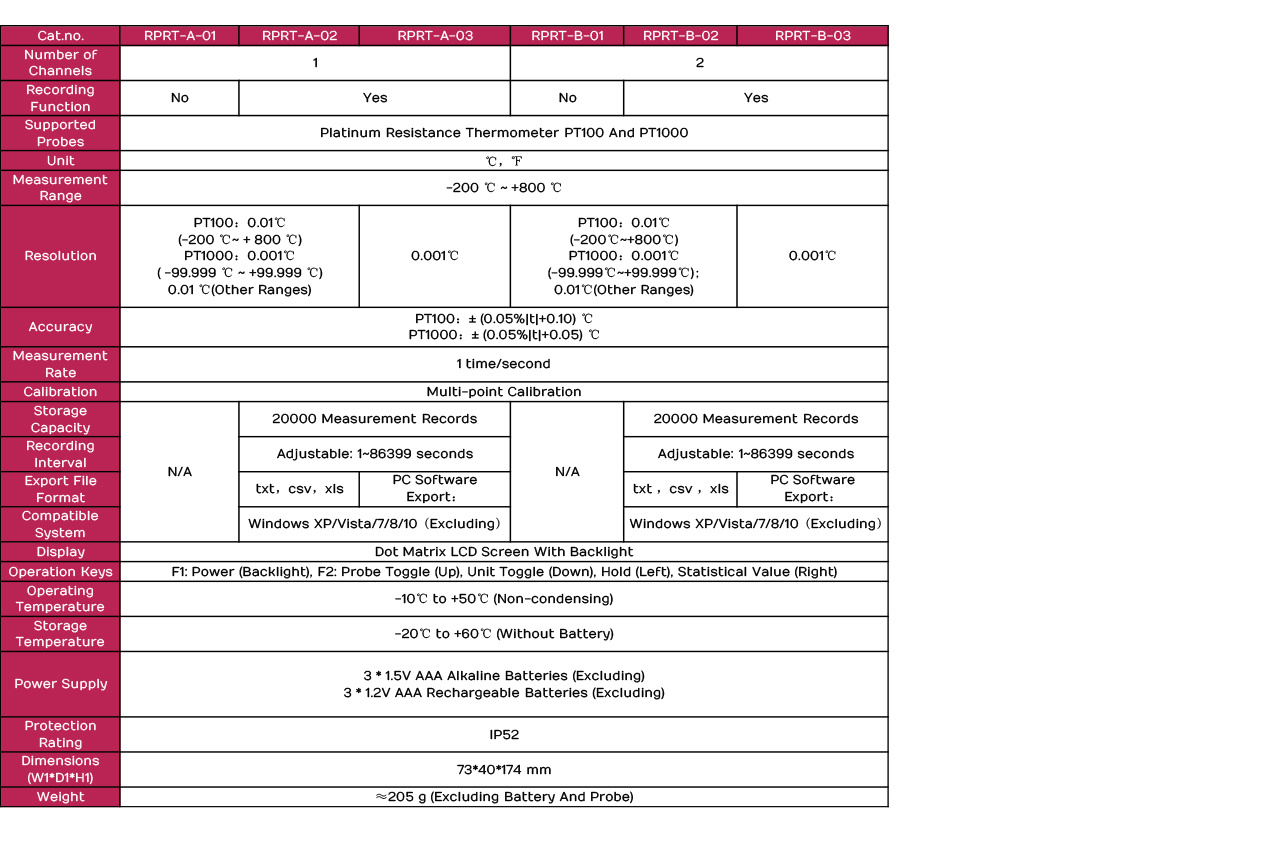

Technical data
1. The optimal ambient temperature for use is 25 °C, and the relative humidity ranges from 40%RH to 60%RH.
2. Avoid exposure to direct sunlight.
3. Refrain from direct contact with corrosive chemical substances.
4. Exercise caution to prevent dropping.
5. It is strictly prohibited to use a USB power supply exceeding 5V!
6. Unauthorized disassembly is expressly forbidden.
7. Take strict precautions against strong electric current and electrostatic shock.
keyword：
Platinum Resistance Thermometers
PT100 PT1000 High Accuracy Platinum Thermometer
Resistance Temperature Detector(RTD)
Industrial Digital Platinum
Previous：
Next：
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: Platinum Resistance Thermometers
- Subtitle: Platinum Resistance Thermometers
- Model: RPRT-A,RPRT-B
- 全部型号: RPRT-A-01,RPRT-A-02,RPRT-A-03,RPRT-B-01,RPRT-B-02,RPRT-B-03,Platinum Resistance Thermometers,PT100 PT1000 High Accuracy Platinum Thermometer,Resistance Temperature Detector(RTD),Industrial Digital Platinum
The platinum resistance thermometer employs pulse measurement technology.
The platinum resistance thermometer employs pulse measurement technology, which reduces the power consumption of the instrument and minimizes the heat generated by the probe itself. Building upon this, the device incorporates the high-precision circuit principle and ultra-accurate reference source, along with precise factory calibration, achieving an exceptional resolution of 0.001℃ and the factory accuracy of ±(0.05%|t| + 0.05)℃. Its applications span laboratory physical quantity measurement and recording; food, medicine, household; industry; aerospace; cold chain transportation; automotive market; metalworking; livestock farming; and supermarkets applications.
-
1. Dual channels (RPRT-A-01, RPRT-A-02, RPRT-A-03).
2. Supports both PT100 and PT1000 probes simultaneously.
3. Maximum resolution of 0.001°C.
4. Factory accuracy up to ±(0.05%|t| + 0.05)°C.
5. After point calibration, the accuracy can reach ±0.015°C.
6. Measuring range: -200°C to +800°C.
7. Capable of displaying temperature difference between two channels (RPRT-A-01, RPRT-A-02, RPRT-A-03).
8. Temperature curve graph.
9. Temperature over-limit alarm function.
10. Displays maximum, minimum and average values.
11. Sampling rate: 1 time per second.
12. Can record 20,000 groups of temperature data (recording version).
15. Supports multiple power supply schemes.
16. Large dot matrix LCD screen with high-quality backlight.
17. Real-time data viewing and export (RPRT-A-03), (RPRT-B-03).
18.This probe can only be used on this product. -
1. The optimal ambient temperature for use is 25 °C, and the relative humidity ranges from 40%RH to 60%RH.
2. Avoid exposure to direct sunlight.
3. Refrain from direct contact with corrosive chemical substances.
4. Exercise caution to prevent dropping.
5. It is strictly prohibited to use a USB power supply exceeding 5V!
6. Unauthorized disassembly is expressly forbidden.
7. Take strict precautions against strong electric current and electrostatic shock.
