Refrigerated And Heated Circulator Bath,2
Refrigerated And Heated Circulator Bath
RHC-A,RHC-B
Brand：
RUISCI
-
Choice
- RHC-A-01B,0.8kW,6L,High Precision(Horizontal)
- RHC-A-02B,1.3kW,10L,High Precision(Horizontal)
- RHC-A-03B,2.1kW,15L,High Precision(Horizontal)
- RHC-A-04B,0.9kW,6L,High Precision(Horizontal)
- RHC-A-05B,1.5kW,10L,High Precision(Horizontal)
- RHC-A-06B,2.2kW,15L,High Precision(Horizontal)
- RHC-A-07B,1kW,6L,High Precision(Horizontal)
- RHC-A-08B,1.8kW,10L,High Precision(Horizontal)
- RHC-A-09B,2.3kW,15L,High Precision(Horizontal)
- RHC-A-10B,1.5kW,6L,High Precision(Horizontal)
- RHC-A-11B,2kW,10L,High Precision (Horizontal)
- RHC-A-12B,2.4kW,15L,High Precision(Horizontal)
- RHC-B-01,0.6kW,6L,Conventional
- RHC-B-02,1kW,10L,Conventional
- RHC-B-03,1.3kW,15L,Conventional
- RHC-B-04,1.5kW,20L,Conventional
- RHC-B-01A,0.6kW,6L,High Precision
- RHC-B-02A,1kW,10L,High Precision
- RHC-B-03A,1.3kW,15L,High Precision
- RHC-B-04A,1.5kW,20L,High Precision
Inventory
2560
隐藏域元素占位
Overview
Refrigerated And Heated Circulator is a multifunctional device capable of concurrently realizing both refrigeration and heating capabilities. Through the refrigeration system, it can transfer heat from low-temperature regions to high-temperature regions, attaining the refrigeration effect; whereas the heating system can convert electrical energy into heat energy, rapidly increasing the temperature. It is extensively applied in domains such as laboratories and industrial production, and can precisely control the temperature to ensure the stable advancement of experiments or production processes.
Features
1. Intelligent PID Control Unit: The PID temperature control system can be automatically searched or manually adjusted, featuring stronger temperature stability. The temperature correction function can reach 0.01 ℃.
2. PT100 Temperature Sensor: The heating tube is fabricated from SUS304 stainless steel, and the PT100 three-wire system ensures more accurate temperature measurement.
3. Copper Core Motor Circulation Pump: The pure copper core motor, with rotor processed by CNC gear grinding, enables rapid circulation, is stable and low-noise, effectively guaranteeing temperature uniformity.
4. Internal Circulation Mode: Connecting the water inlet and outlet of the thermostatic bath with a single hose is termed as internal circulation.
5. External Circulation Mode: External circulation can extract the constant-temperature liquid within the bath to the exterior to establish a second constant-temperature field. It can also serve as a cold source to guide the refrigerated liquid inside the bath to the external experimental container for easier cooling.

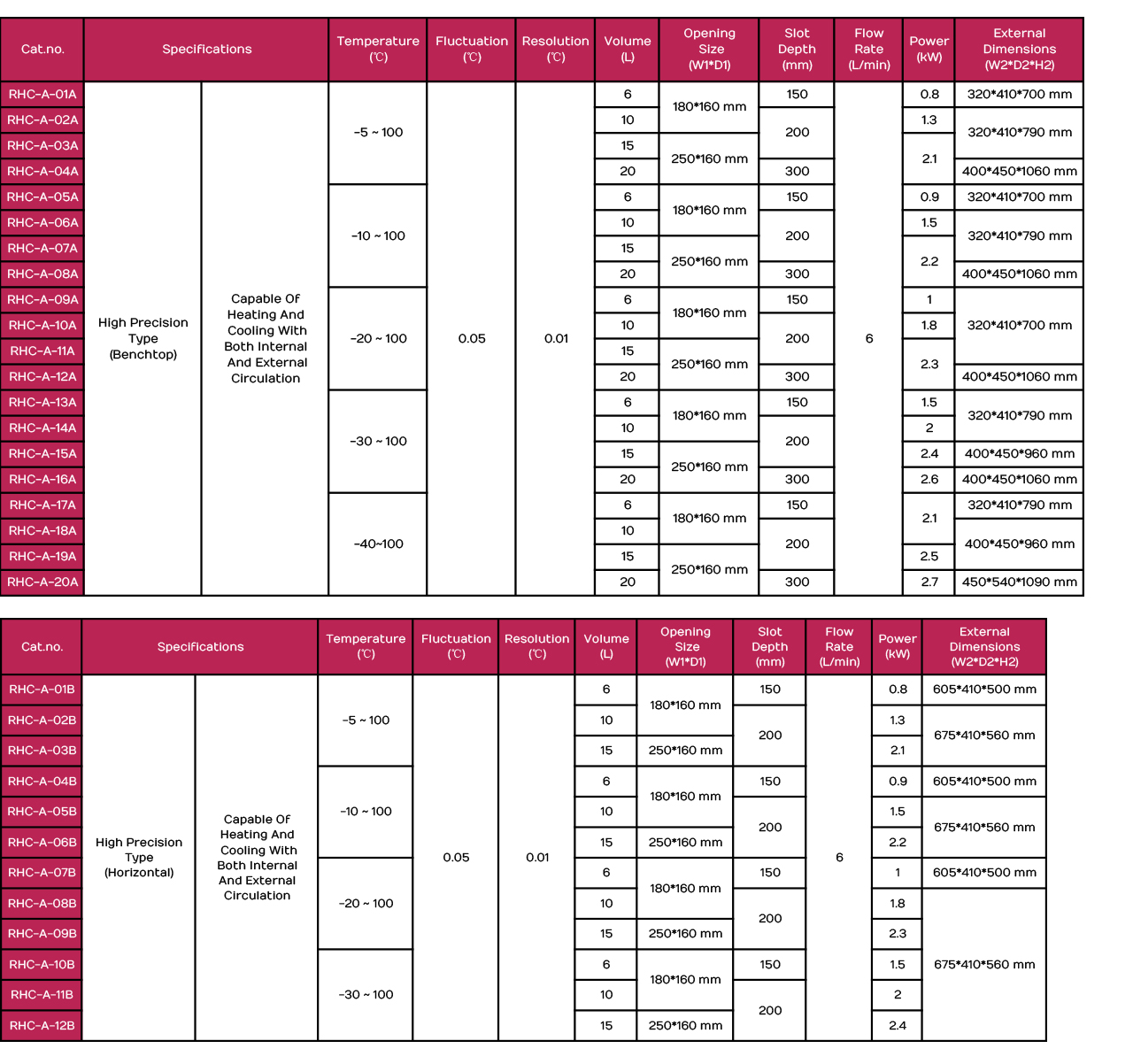

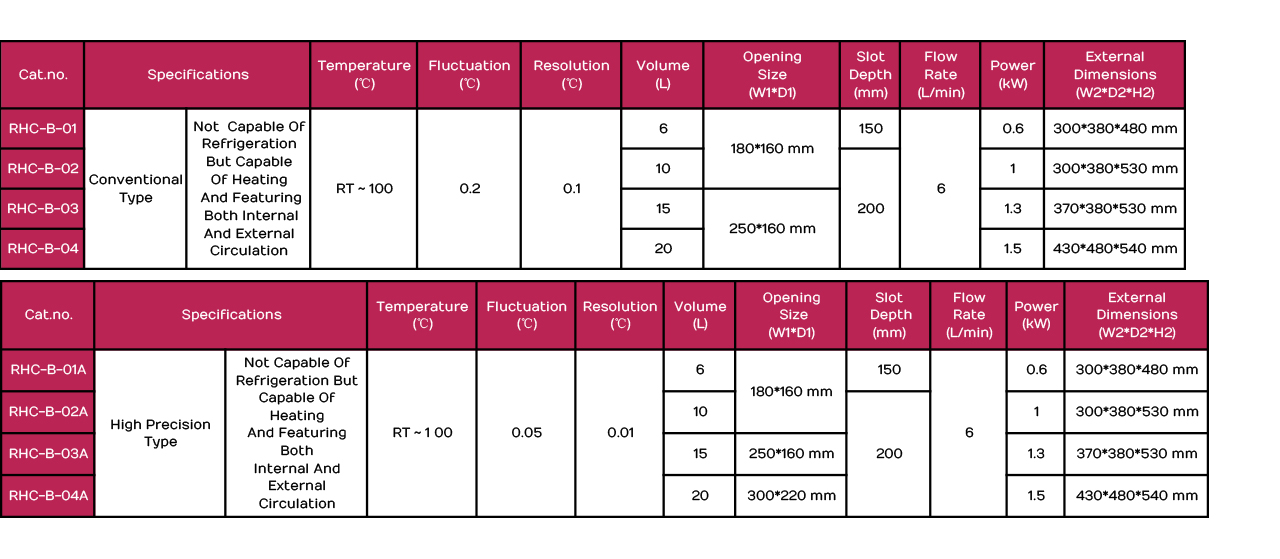

Technical data
Working Environment Conditions:
1. Adequate Ventilation: Ensure a free flow of air around the equipment to avoid heat accumulation.
2. Absence of Corrosive Gases: Avoid usage in environments containing corrosive gases such as acids and alkalis to prevent equipment damage.
3. Free from Strong Electromagnetic Interference: Stay away from strong electromagnetic fields to evade influencing the electrical system of the equipment.
4. Flat and Stable Ground: The ground where the equipment is placed should be level and stable to prevent the equipment from tilting or swaying.
5. Stable Power Supply: Provide a stable power supply that complies with the equipment's requirements to avoid voltage fluctuations.
9. No Direct Sunlight Exposure: Prevent direct sunlight from shining on the equipment to avoid excessive surface temperature.
Precautions:
1. Equipment Inspection: Before usage, check whether all components are intact, and verify that the liquid level and air pressure are normal.
2. Grounding Safety: Ensure reliable grounding of the power supply. Do not operate when hands are moist.
3. Stable Placement: After adding liquid, avoid transporting or tilting the equipment. When discharging liquid, it should be conducted at room temperature.
4. Medium Selection: Utilize a heat transfer medium that is non-corrosive, non-flammable, non-explosive, and non-volatile.
5. Protecting the Circulation Pump: Do not activate the circulation pump when there is no heat transfer medium.
6. Hose Inspection: Ensure that externally connected hoses are firmly attached and avoid sharp bends.
7. Fault Handling: In the event of equipment damage or leakage, disconnect the power supply prior to undertaking repairs.
8. Avoid Shaking: During usage, prevent the equipment from shaking or undergoing elevation and descent.
keyword：
Previous：
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: Refrigerated And Heated Circulator Bath,2
- Subtitle: Refrigerated And Heated Circulator Bath
- Model: RHC-A,RHC-B
- 全部型号: RHC-A-01B,RHC-A-02B,RHC-A-03B,RHC-A-04B,RHC-A-05B,RHC-A-06B,RHC-A-07B,RHC-A-08B,RHC-A-09B,RHC-A-10B,RHC-A-11B,RHC-A-12B,RHC-B-01,RHC-B-02,RHC-B-03,RHC-B-04,RHC-B-01A,RHC-B-02A,RHC-B-03A,RHC-B-04A
Refrigerated And Heated Circulator is a multifunctional device capable of concurrently realizing both refrigeration and heating capabilities.
Refrigerated And Heated Circulator is a multifunctional device capable of concurrently realizing both refrigeration and heating capabilities. Through the refrigeration system, it can transfer heat from low-temperature regions to high-temperature regions, attaining the refrigeration effect; whereas the heating system can convert electrical energy into heat energy, rapidly increasing the temperature. It is extensively applied in domains such as laboratories and industrial production, and can precisely control the temperature to ensure the stable advancement of experiments or production processes.
-
1. Intelligent PID Control Unit: The PID temperature control system can be automatically searched or manually adjusted, featuring stronger temperature stability. The temperature correction function can reach 0.01 ℃.
2. PT100 Temperature Sensor: The heating tube is fabricated from SUS304 stainless steel, and the PT100 three-wire system ensures more accurate temperature measurement.
3. Copper Core Motor Circulation Pump: The pure copper core motor, with rotor processed by CNC gear grinding, enables rapid circulation, is stable and low-noise, effectively guaranteeing temperature uniformity.
4. Internal Circulation Mode: Connecting the water inlet and outlet of the thermostatic bath with a single hose is termed as internal circulation.
5. External Circulation Mode: External circulation can extract the constant-temperature liquid within the bath to the exterior to establish a second constant-temperature field. It can also serve as a cold source to guide the refrigerated liquid inside the bath to the external experimental container for easier cooling. -
Working Environment Conditions:
1. Adequate Ventilation: Ensure a free flow of air around the equipment to avoid heat accumulation.
2. Absence of Corrosive Gases: Avoid usage in environments containing corrosive gases such as acids and alkalis to prevent equipment damage.
3. Free from Strong Electromagnetic Interference: Stay away from strong electromagnetic fields to evade influencing the electrical system of the equipment.
4. Flat and Stable Ground: The ground where the equipment is placed should be level and stable to prevent the equipment from tilting or swaying.
5. Stable Power Supply: Provide a stable power supply that complies with the equipment's requirements to avoid voltage fluctuations.
9. No Direct Sunlight Exposure: Prevent direct sunlight from shining on the equipment to avoid excessive surface temperature.Precautions:
1. Equipment Inspection: Before usage, check whether all components are intact, and verify that the liquid level and air pressure are normal.
2. Grounding Safety: Ensure reliable grounding of the power supply. Do not operate when hands are moist.
3. Stable Placement: After adding liquid, avoid transporting or tilting the equipment. When discharging liquid, it should be conducted at room temperature.
4. Medium Selection: Utilize a heat transfer medium that is non-corrosive, non-flammable, non-explosive, and non-volatile.
5. Protecting the Circulation Pump: Do not activate the circulation pump when there is no heat transfer medium.
6. Hose Inspection: Ensure that externally connected hoses are firmly attached and avoid sharp bends.
7. Fault Handling: In the event of equipment damage or leakage, disconnect the power supply prior to undertaking repairs.
8. Avoid Shaking: During usage, prevent the equipment from shaking or undergoing elevation and descent.
