Phase Volt Ampere Gauge
Phase Volt Ampere Gauge
RPVA-A
Brand：
RUISCI
-
Choice
- RPVA-A-01,Digital Dual Clampv
- RPVA-A-02,Intelligent Three Phase
Inventory
550
隐藏域元素占位
Overview
The Phase Volt Ampere Gauge is a device designed to simultaneously measure alternating current voltage, current, and the phase difference between them in a laboratory. This device not only measure the magnitudes of voltage and current but also the phase angle between voltage and current, enabling users to analyze key parameters such as power factor, active power, and reactive power in electrical circuit.
Features
Features:
1. Digital dual-clamp phase volt-ampere gauge can imultaneously measure 4 input signals (2 voltage channels and 2 current channels).
2. Intelligent three-phase phase volt-ampere gauge has 6 input channels, including three voltage channels and three current channels, all of which are fully isolated from each other.It supports both three-phase four-wire and three-phase three-wire connection methods.
3. Digital dual-clamp phase volt-ampere gauge features a 2.4-inch high-resolution (320*240) true-color TFT display. It can show true RMS values of voltage and current, phase angle, frequency, power, power factor and other electrical parameters. The measurement results are displayed in multiple formats including vector diagrams, amplitudes, phases, and power.
4. Intelligent three-phase phase volt-ammeter features a 3.5-inch high-resolution (320*480). Its true-color TFT display shows multiple parameters at once: voltage, current, phase angle, frequency, power and power factor in real time. The measurement results are presented in various forms such as vector diagrams, amplitudes, phases, and primary values.
5. Voltage and current waveforms can be displayed in real time.
6. It supports software calibration without internal hardware calibration, ensuring excellent stability.
7. With simple operation, easy use, fast measurement,stable performance and the results are reliable.

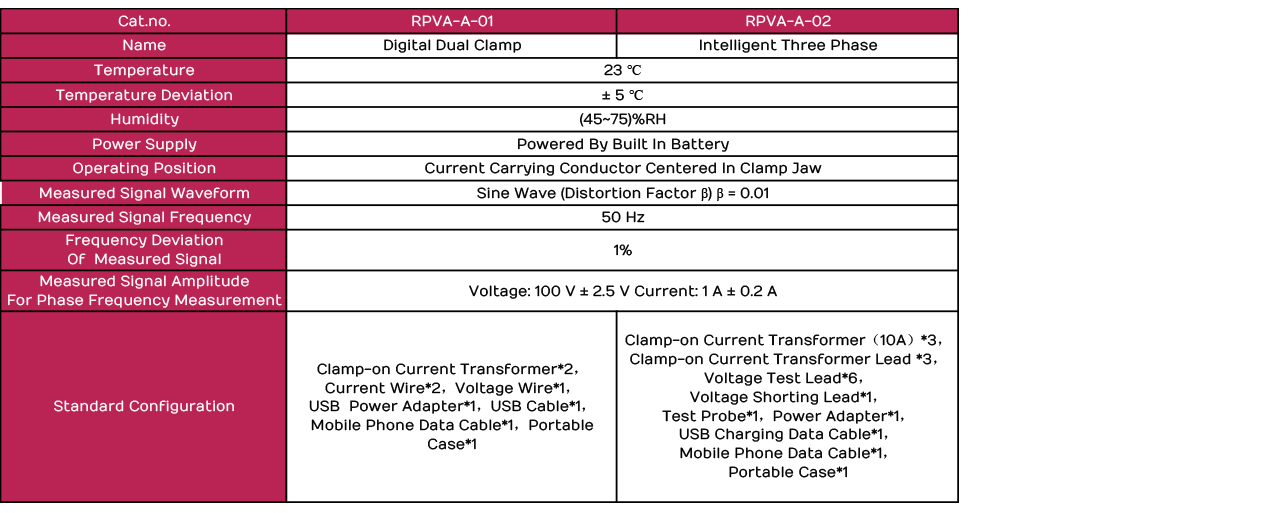

Technical data
Precautions:
1. Inspect the meter housing for any cracks or damage, and ensure the display is clear and intact.
2. Never connect/disconnect test leads or replace current clamp on energized circuits. Always de-energize the circuit before changing measurement parameters or adjusting wiring.
3. During the measurement process, keep the meter away from strong electromagnetic sources, such as large motors or transformers, to prevent interference.
4. For phase measurements, align the current clamp with the direction arrow marked on the clamp body.
5. After use, gently wipe the meter housing with a clean and soft damp cloth to remove dust and stains.
6. For long-term storage, remove the battery to prevent leakage.
keyword：
Phase Volt Ampere Meter
Digital Double Clamp Phase Volt Ampere Gauge
Intelligent Three Phase Phase Volt Ampere Gauge
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: Phase Volt Ampere Gauge
- Subtitle: Phase Volt Ampere Gauge
- Model: RPVA-A
- 全部型号: Phase Volt Ampere Meter,Digital Double Clamp Phase Volt Ampere Gauge,Intelligent Three Phase Phase Volt Ampere Gauge,RPVA-A-01,RPVA-A-02
The Phase Volt Ampere Gauge is a device designed to simultaneously measure alternating current voltage, current, and the phase difference between them in a laboratory.
The Phase Volt Ampere Gauge is a device designed to simultaneously measure alternating current voltage, current, and the phase difference between them in a laboratory. This device not only measure the magnitudes of voltage and current but also the phase angle between voltage and current, enabling users to analyze key parameters such as power factor, active power, and reactive power in electrical circuit.
-
Features:
1. Digital dual-clamp phase volt-ampere gauge can imultaneously measure 4 input signals (2 voltage channels and 2 current channels).
2. Intelligent three-phase phase volt-ampere gauge has 6 input channels, including three voltage channels and three current channels, all of which are fully isolated from each other.It supports both three-phase four-wire and three-phase three-wire connection methods.
3. Digital dual-clamp phase volt-ampere gauge features a 2.4-inch high-resolution (320*240) true-color TFT display. It can show true RMS values of voltage and current, phase angle, frequency, power, power factor and other electrical parameters. The measurement results are displayed in multiple formats including vector diagrams, amplitudes, phases, and power.
4. Intelligent three-phase phase volt-ammeter features a 3.5-inch high-resolution (320*480). Its true-color TFT display shows multiple parameters at once: voltage, current, phase angle, frequency, power and power factor in real time. The measurement results are presented in various forms such as vector diagrams, amplitudes, phases, and primary values.
5. Voltage and current waveforms can be displayed in real time.
6. It supports software calibration without internal hardware calibration, ensuring excellent stability.
7. With simple operation, easy use, fast measurement,stable performance and the results are reliable. -
Precautions:
1. Inspect the meter housing for any cracks or damage, and ensure the display is clear and intact.
2. Never connect/disconnect test leads or replace current clamp on energized circuits. Always de-energize the circuit before changing measurement parameters or adjusting wiring.
3. During the measurement process, keep the meter away from strong electromagnetic sources, such as large motors or transformers, to prevent interference.
4. For phase measurements, align the current clamp with the direction arrow marked on the clamp body.
5. After use, gently wipe the meter housing with a clean and soft damp cloth to remove dust and stains.
6. For long-term storage, remove the battery to prevent leakage.
Q and A
Q
Distribution Modes:
A
Default Distribution Mode: EXW China Factory: After your payment is received, our customer service will contact you to confirm the pickup time and location once the goods are ready at the RUISCI China factory.
*Other options:
1.Carriage Paid To (CPT)
DO NOT PAY until you have contacted customer service to add shipping costs, as the default price is EXW China factory.
2.Delivered Duty Paid（DDP）
DO NOT PAY until you have ·contacted customer service to add Freight, insurance, taxes, customs clearance fees, and other miscellaneous expenses, as the default price is EXW China factory. Typically applies exclusively to small air cargo packages.
3. FOB China main port
DO NOT PAY until you have contacted customer service to add the inland charges and export declaration charges, as the default price is EXW China factory.
*** If you still need to consult other distribution modes or trade terms, please contact our customer service directly
Q
Payment methods:
A
1. On-line payment: Paypal
2. Off-line payment: Telegraphic Transfer (TT)
*All charges, except those incurred within our bank, are to be borne by the remitter. Insufficient payment will delay your shipment.
Download
There is currently no content to display
Related products
Price：
10050
USD
Delivery：
30 Days
Four-Wire Low Resistance Test Clip
Price：
12
USD
Delivery：
7 Days

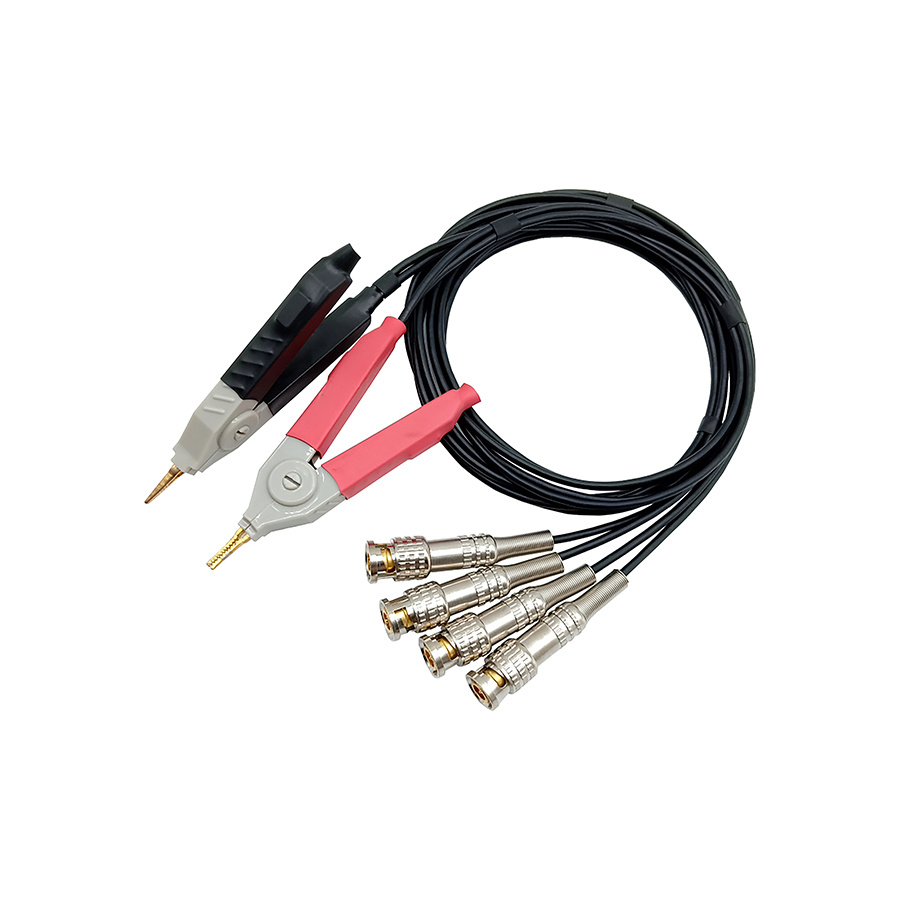

Four - Wire Resistive Test Cable
