Fixed Inclinometer
Fixed Inclinometer
FN-A
Brand：
RUISCI
-
Choice
- FN-A-01,750 mm
Inventory
274
隐藏域元素占位
Overview
The Fixed Inclinometer is a high precision instrument designed for measuring and monitoring tilt variations and horizontal displacements in structures or soil masses. It is usually installed at a fixed position for long-term and continuous monitoring.
Features
1. Equipped with high-precision tilt sensors, it is capable of accurately measuring minute variations in tilt angles.
2. Applicable to long-term and continuous monitoring projects, it can operate stably and offer reliable measurement data.
3. It possesses exceptional anti-interference capability.
4. The installation process is straightforward, saving time and labor.

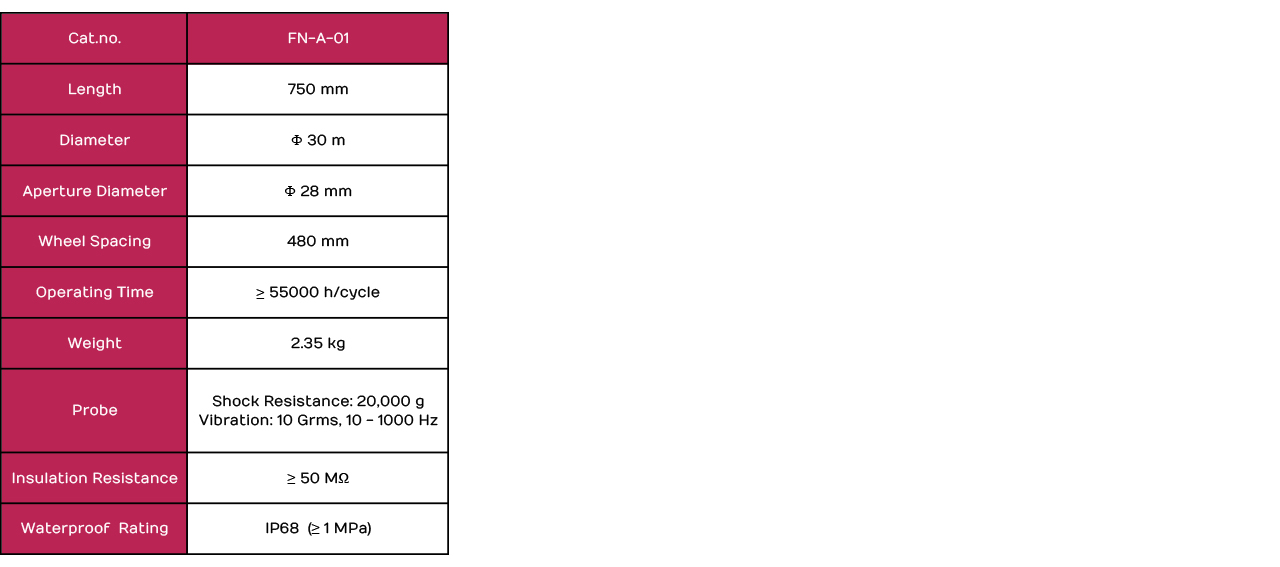

Technical data
Precautions:
1. Before installation, inspect whether all components of the inclinometer are intact. Ensure that the guide wheels of the inclinometer can rotate flexibly and the torsion spring is proper tension.
2. The inclinometer tube should be installed on the object or structure under measurement, guaranteeing its stability and verticality.
3. The orifice device should be installed accurately to ensure that the fixed inclinometer can remain stably within the inclinometer tube for an extended period, thereby ensuring the accuracy of the measurement data.
4. The inclinometer is a precision instrument and should be handled delicately to avoid intense vibration and impact.
5. After usage, rinse the probe with clean water, remove dirt such as silt and mud, and blow it dry.
6. Do not expose the inclinometer to high temperatures, humidity or adverse environments to prevent influencing the measurement accuracy and the lifespan of the equipment.
7. During the measurement process, do not shift the inclinometer randomly to avoid interfering with the measurement outcomes.
8. When not in use for an extended period, store the inclinometer in a dry, well-ventilated place without direct sunlight.
9. Lubricate the axle of the inclinometer periodically to prevent rust and prolong its service life.
keyword：
tationary Inclinometer
Deflectometer
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: Fixed Inclinometer
- Subtitle: Fixed Inclinometer
- Model: FN-A
- 全部型号: tationary Inclinometer. Deflectometer,FN-A-01
The Fixed Inclinometer is a high precision instrument designed for measuring and monitoring tilt variations and horizontal displacements in structures or soil masses.
The Fixed Inclinometer is a high precision instrument designed for measuring and monitoring tilt variations and horizontal displacements in structures or soil masses. It is usually installed at a fixed position for long-term and continuous monitoring.
-
1. Equipped with high-precision tilt sensors, it is capable of accurately measuring minute variations in tilt angles.
2. Applicable to long-term and continuous monitoring projects, it can operate stably and offer reliable measurement data.
3. It possesses exceptional anti-interference capability.
4. The installation process is straightforward, saving time and labor. -
Precautions:
1. Before installation, inspect whether all components of the inclinometer are intact. Ensure that the guide wheels of the inclinometer can rotate flexibly and the torsion spring is proper tension.
2. The inclinometer tube should be installed on the object or structure under measurement, guaranteeing its stability and verticality.
3. The orifice device should be installed accurately to ensure that the fixed inclinometer can remain stably within the inclinometer tube for an extended period, thereby ensuring the accuracy of the measurement data.
4. The inclinometer is a precision instrument and should be handled delicately to avoid intense vibration and impact.
5. After usage, rinse the probe with clean water, remove dirt such as silt and mud, and blow it dry.
6. Do not expose the inclinometer to high temperatures, humidity or adverse environments to prevent influencing the measurement accuracy and the lifespan of the equipment.
7. During the measurement process, do not shift the inclinometer randomly to avoid interfering with the measurement outcomes.
8. When not in use for an extended period, store the inclinometer in a dry, well-ventilated place without direct sunlight.
9. Lubricate the axle of the inclinometer periodically to prevent rust and prolong its service life.
Q and A
Q
Distribution Modes:
A
Default Distribution Mode: EXW China Factory: After your payment is received, our customer service will contact you to confirm the pickup time and location once the goods are ready at the RUISCI China factory.
*Other options:
1.Carriage Paid To (CPT)
DO NOT PAY until you have contacted customer service to add shipping costs, as the default price is EXW China factory.
2.Delivered Duty Paid（DDP）
DO NOT PAY until you have ·contacted customer service to add Freight, insurance, taxes, customs clearance fees, and other miscellaneous expenses, as the default price is EXW China factory. Typically applies exclusively to small air cargo packages.
3. FOB China main port
DO NOT PAY until you have contacted customer service to add the inland charges and export declaration charges, as the default price is EXW China factory.
*** If you still need to consult other distribution modes or trade terms, please contact our customer service directly
Q
Payment methods:
A
1. On-line payment: Paypal
2. Off-line payment: Telegraphic Transfer (TT)
*All charges, except those incurred within our bank, are to be borne by the remitter. Insufficient payment will delay your shipment.
Download
There is currently no content to display
Related products
Price：
4208
USD
Delivery：
30 Days
Price：
900
USD
Delivery：
30 Days
Price：
1750
USD
Delivery：
30 Days

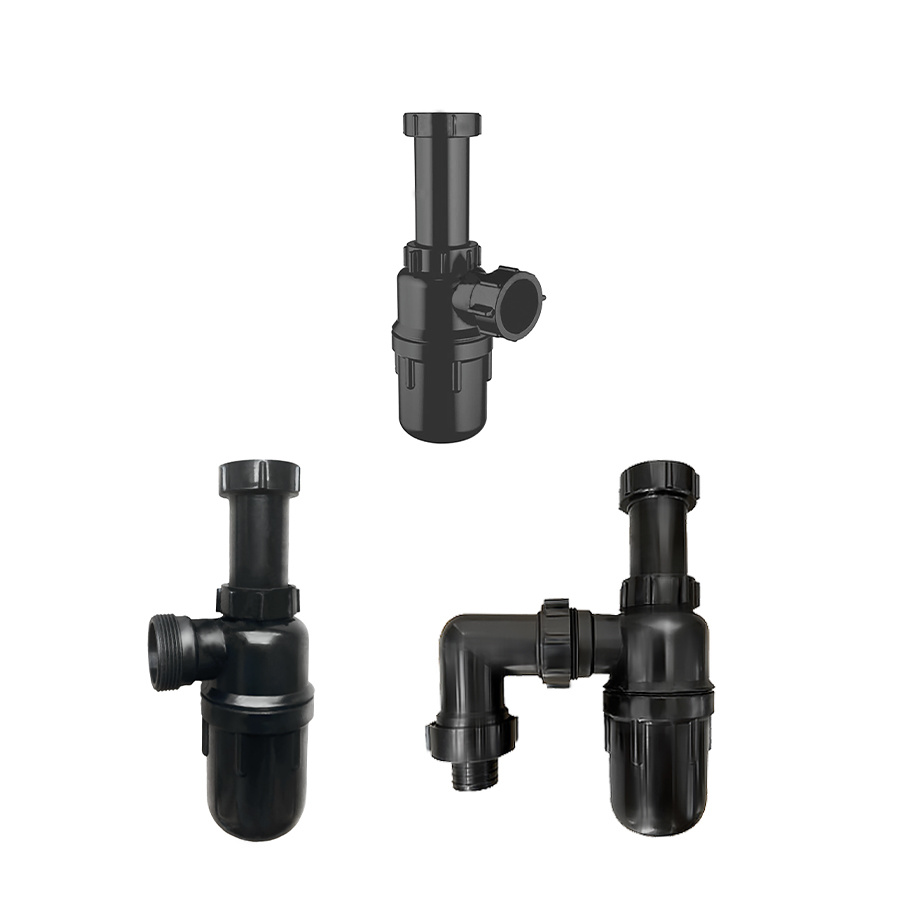

Anti-Odor Sink Drain Pipe For Lab
