Radar Level Gauge
Radar Level Gauge
RRLG-A
Brand：
RUISCI
-
Choice
- RRLG-A-01,0.1 ~ 85 m
Inventory
259
隐藏域元素占位
Overview
The Radar Level Gauge is a high-precision instrument used for measuring the the level of liquids, slurries, or solid particles within containers. It is widely applied in level detection in laboratory settings.
Features
1. Relying on self-developed CMOS millimeter-wave RF chips, the Radar Level Gauge offers a more compact RF architecture, higher signal-to-noise ratio and smaller blind zones.
2. The 5GHz operating bandwidth enables the product to possess higher measurement resolution and precision.
3. The 3° antenna beam angle minimizes interference from the installation environment, making installation more convenient.
4. Shorter wavelength has better reflection characteristics on solid surfaces, thus eliminating the necessity of using special universal flanges for aiming.
5. Supports remote debugging and remote upgrading, reducing waiting time and improving work efficiency.
6. Compatible with mobile phone Bluetooth debugging, facilitating maintenance tasks for on-site personnel.
7. Explosion Proof Standard: GB/T 3836.1-2021, GB/T 3836.2-2021

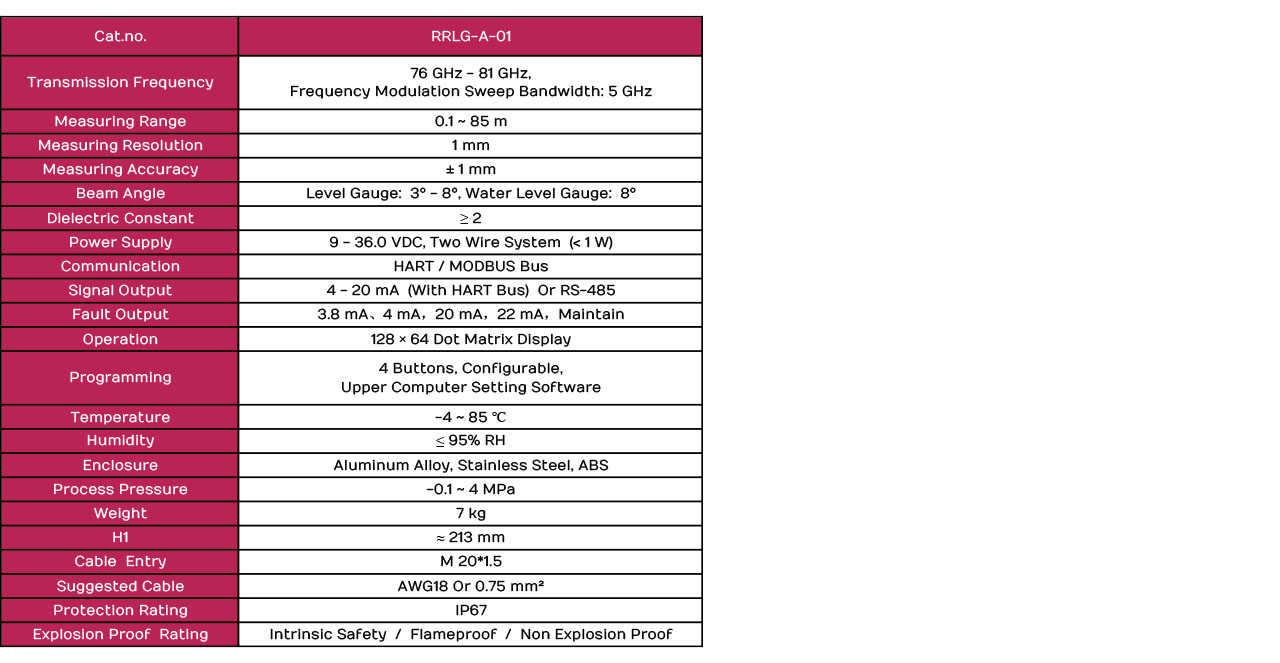

Technical data
Precautions:
1.Aim directly at the target material level and maintain a vertical beam incidence as much as possible.
2. Ensure there are no interfering objects within the beam range.
3. Install the instrument so that the antenna beam avoids the feed inlet.
4. Install the instrument at least 20 cm away from the container wall,to prevent erroneous readings.
5. Avoid installation in areas with strong electromagnetic interference, mechanical vibration, or severe temperature variations.
6. Ensure a firm installation to prevent displacement due to vibration or other causes.
7. Avoid using in flammable, explosive, or highly corrosive environments.
keyword：
Level Measuring Instrument.
IEC 61580: 2010
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: Radar Level Gauge
- Subtitle: Radar Level Gauge
- Model: RRLG-A
- 全部型号: Radar Level Meter. Level Measuring Instrument. Laboratory Radar Level Meter. IEC 61580: 2010,RRLG-A-01
The Radar Level Gauge is a high-precision instrument used for measuring the the level of liquids, slurries, or solid particles within containers. It is widely applied in level detection in laboratory settings.
The Radar Level Gauge is a high-precision instrument used for measuring the the level of liquids, slurries, or solid particles within containers. It is widely applied in level detection in laboratory settings.
-
1. Relying on self-developed CMOS millimeter-wave RF chips, the Radar Level Gauge offers a more compact RF architecture, higher signal-to-noise ratio and smaller blind zones.
2. The 5GHz operating bandwidth enables the product to possess higher measurement resolution and precision.
3. The 3° antenna beam angle minimizes interference from the installation environment, making installation more convenient.
4. Shorter wavelength has better reflection characteristics on solid surfaces, thus eliminating the necessity of using special universal flanges for aiming.
5. Supports remote debugging and remote upgrading, reducing waiting time and improving work efficiency.
6. Compatible with mobile phone Bluetooth debugging, facilitating maintenance tasks for on-site personnel.
7. Explosion Proof Standard: GB/T 3836.1-2021, GB/T 3836.2-2021 -
Precautions:
1.Aim directly at the target material level and maintain a vertical beam incidence as much as possible.
2. Ensure there are no interfering objects within the beam range.
3. Install the instrument so that the antenna beam avoids the feed inlet.
4. Install the instrument at least 20 cm away from the container wall,to prevent erroneous readings.
5. Avoid installation in areas with strong electromagnetic interference, mechanical vibration, or severe temperature variations.
6. Ensure a firm installation to prevent displacement due to vibration or other causes.
7. Avoid using in flammable, explosive, or highly corrosive environments.
Q and A
Q
Distribution Modes:
A
Default Distribution Mode: EXW China Factory: After your payment is received, our customer service will contact you to confirm the pickup time and location once the goods are ready at the RUISCI China factory.
*Other options:
1.Carriage Paid To (CPT)
DO NOT PAY until you have contacted customer service to add shipping costs, as the default price is EXW China factory.
2.Delivered Duty Paid（DDP）
DO NOT PAY until you have ·contacted customer service to add Freight, insurance, taxes, customs clearance fees, and other miscellaneous expenses, as the default price is EXW China factory. Typically applies exclusively to small air cargo packages.
3. FOB China main port
DO NOT PAY until you have contacted customer service to add the inland charges and export declaration charges, as the default price is EXW China factory.
*** If you still need to consult other distribution modes or trade terms, please contact our customer service directly
Q
Payment methods:
A
1. On-line payment: Paypal
2. Off-line payment: Telegraphic Transfer (TT)
*All charges, except those incurred within our bank, are to be borne by the remitter. Insufficient payment will delay your shipment.
