Barcol Hardness Tester
Barcol Hardness Tester
RHBA-A
Brand:
RUISCI
-
Click to select
- RHBA-A-01,Pointer
- RHBA-A-02,Digital Display
Inventory
396
隐藏域元素占位
Overview
The Barcol Hardness Tester serves as a crucial instrument for measuring the hardness of soft materials, including plastics, rubbers, and leathers. Its working principle involves applying a needle of a specific weight onto the material's surface and precisely measuring the depth of penetration. Based on this measurement, the hardness value of the material can be determined.Characterized by its user-friendly operation, rapid measurement capabilities, and suitability for on-site testing, the Barcol hardness tester offers the advantage of not causing damage to the sample during the testing process. The measurement results are presented in Barcol hardness units (BHN), where higher values correspond to materials with greater hardness.This tester finds extensive applications such as material research and development, quality control, and production processes. Ensuring that the hardness of materials adheres to specific requirementsv.
Features
1. Easy Operation: Easy to use, no complex calibration required.
2. Non-destructive: Does not damage the tested material.
3. Quick Measurement: Results available within seconds.
4. Portable Design: Easy to carry, suitable for on-site testing.
5. Wide Application: Applicable to various materials such as rubber and plastic.
6. Intuitive Reading: Digital or dial display, easy to read.
7. Pointer: High-toughness dial window, clear scale.
8. Digital Display: Accurately shows values, one-click conversion among five hardness units.
9. Detachable Feet: Attached to the bottom of the hardness tester, assisting in keeping the indenter perpendicular to the surface of the tested object.

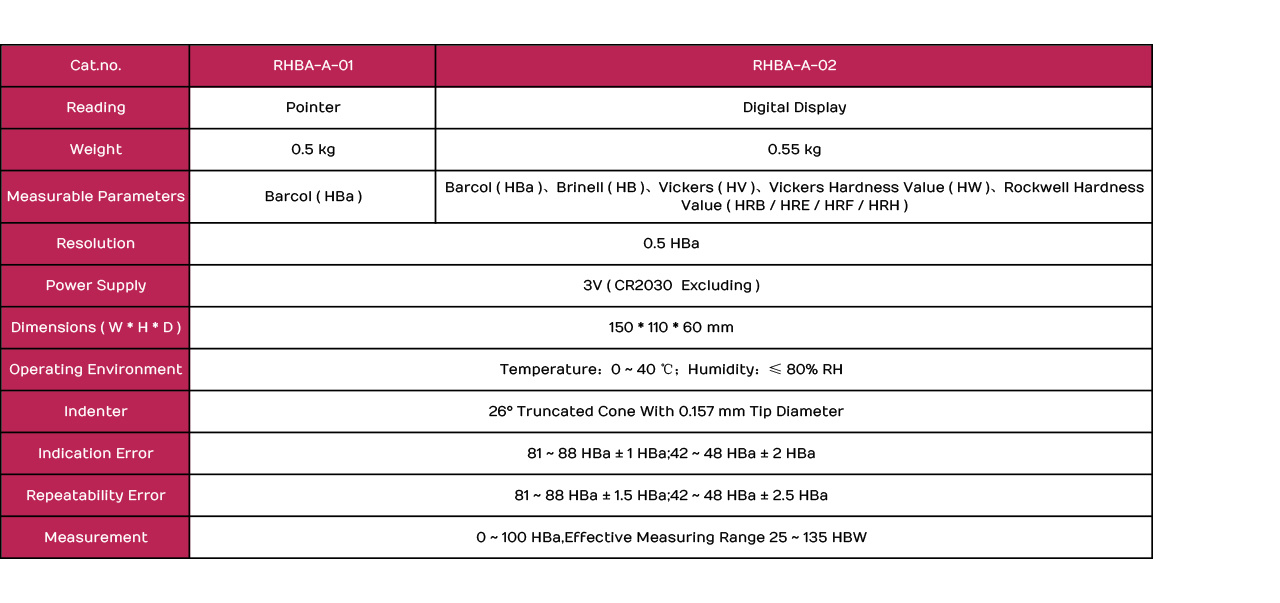

Technical data

Operating Precautions:
1. Guarantee the vertical insertion of the material.
2. Maintain the flatness and cleanliness of the sample surface.
3. Record the hardness value promptly.
4. Refrain from conducting tests at the edges or on pre - existing indentations.
5. Calibrate and clean the equipment at regular intervals.
6. Handle with meticulous care to prevent damage to the indenter.
keyword:
Barcol Hardness Tester
Analog Barcol Hardness Tester
Portable Barcol Hardness Tester
Digital Barcol Hardness Meter
Universal Hardness Tester(Vickers/Brinell/Rockwell)
Previous:
Next:
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: Barcol Hardness Tester
- Subtitle: Barcol Hardness Tester
- Model: RHBA-A
- 全部型号: RHBA-A-01,RHBA-A-02,Barcol Hardness Tester,Analog Barcol Hardness Tester,Portable Barcol Hardness Tester,Digital Barcol Hardness Meter,Universal Hardness Tester(Vickers/Brinell/Rockwell)
The Barcol Hardness Tester serves as a crucial instrument for measuring the hardness of soft materials, including plastics, rubbers, and leathers.
The Barcol Hardness Tester serves as a crucial instrument for measuring the hardness of soft materials, including plastics, rubbers, and leathers. Its working principle involves applying a needle of a specific weight onto the material's surface and precisely measuring the depth of penetration. Based on this measurement, the hardness value of the material can be determined.Characterized by its user-friendly operation, rapid measurement capabilities, and suitability for on-site testing, the Barcol hardness tester offers the advantage of not causing damage to the sample during the testing process. The measurement results are presented in Barcol hardness units (BHN), where higher values correspond to materials with greater hardness.This tester finds extensive applications such as material research and development, quality control, and production processes. Ensuring that the hardness of materials adheres to specific requirementsv.
-
1. Easy Operation: Easy to use, no complex calibration required.
2. Non-destructive: Does not damage the tested material.
3. Quick Measurement: Results available within seconds.
4. Portable Design: Easy to carry, suitable for on-site testing.
5. Wide Application: Applicable to various materials such as rubber and plastic.
6. Intuitive Reading: Digital or dial display, easy to read.
7. Pointer: High-toughness dial window, clear scale.
8. Digital Display: Accurately shows values, one-click conversion among five hardness units.
9. Detachable Feet: Attached to the bottom of the hardness tester, assisting in keeping the indenter perpendicular to the surface of the tested object. -

Operating Precautions:
1. Guarantee the vertical insertion of the material.
2. Maintain the flatness and cleanliness of the sample surface.
3. Record the hardness value promptly.
4. Refrain from conducting tests at the edges or on pre - existing indentations.
5. Calibrate and clean the equipment at regular intervals.
6. Handle with meticulous care to prevent damage to the indenter.
