Rockwell Hardness Tester
Rockwell Hardness Tester
RHR-M,RHR-A,RHR-HB-A,RHR-HB-B,RHR-HB-C,RHR-ND-A,RHR-ND-B,RHR-ND-C,RHR-SP-A,RHR-SP-B,RHR-SP-C
Brand：
RUISCI
-
Choice
- RHR-M-01,Rockwell,Dial,170mm
- RHR-M-02,Rockwell,Digital Display,170mm
- RHR-M-03,Rockwell,Dial,400mm
- RHR-M-04,Surface Rockwell,Dial,175mm
- RHR-M-05,Plastic Rockwell,Dial,175mm
- RHR-A-01,Surface Rockwell,Touch,230mm
- RHR-A-02,Full Rockwell,Automatic Screw Lift,Touch,230mm
- RHR-A-03,Plastic Rockwell,Touch,230mm
- RHR-A-04,Full Rockwell,Touch,230mm
- RHR-A-05,Surface Rockwell,Touch,230mm
- RHR-A-06,Rockwell,Touch,400mm
- RHR-A-07,Rockwell,Dial,175mm
- RHR-A-08,Rockwell,Digital Display,175mm
- RHR-A-09,Rockwell,Digital Display,400mm
- RHR-A-10,Surface Rockwell,Dial,175mm
- RHR-A-11,Plastic Rockwell,Dial,175mm
- RHR-HB-A-01,Rockwell Hardness Block,80-88HRA
- RHR-HB-A-02,Rockwell Hardness Block,85-100HRB
- RHR-HB-A-03,Rockwell Hardness Block,20-30HRC
- RHR-HB-A-04,Rockwell Hardness Block,35-55HRC
- RHR-HB-A-05,Rockwell Hardness Block,60-70HRC
- RHR-HB-B-01,Surface Rockwell Hardness Block,89-91HR15N
- RHR-HB-B-02,Surface Rockwell Hardness Block,42-50HR30N
- RHR-HB-B-03,Surface Rockwell Hardness Block,75-80HR30N
- RHR-HB-B-04,Surface Rockwell Hardness Block,73-93HR15T
- RHR-HB-B-05,Surface Rockwell Hardness Block,20-70HR45N
- RHR-HB-B-06,Surface Rockwell Hardness Block,70-82HR30T
- RHR-HB-C-01,Plastic Rockwell Hardness Block,70-100HRE
- RHR-HB-C-02,Plastic Rockwell Hardness Block,50-115HRL
- RHR-HB-C-03,Plastic Rockwell Hardness Block,50-115HRM
- RHR-HB-C-04,Plastic Rockwell Hardness Block,50-11HRR
- RHR-ND-A-01,Diamond Indenter
- RHR-ND-B-01,Rockwell Indenter
- RHR-ND-C-01,Plastic Rockwell Indenter,3.175mm
- RHR-ND-C-02,Plastic Rockwell Indenter,6.35mm
- RHR-ND-C-03,Plastic Rockwell Indenter,12.7mm
- RHR-SP-A-01,Rockwell Screw
- RHR-SP-B-01,Large Platform
- RHR-SP-B-02,Small Platform
- RHR-SP-B-03,V-Block
- RHR-SP-C-01,Rockwell Gauge
Inventory
7462
隐藏域元素占位
Overview
The Rockwell hardness tester is a precise instrument for hardness testing, which measures the resistance of a material's surface to a hard indenter (either a diamond cone or a carbide ball) using the Rockwell hardness test method. This test calculates the hardness value by applying an initial and main test force and measuring the depth of the indentation or the rebound of the indenter, expressed as a Rockwell hardness number (HR). The Rockwell hardness tester is widely used in the hardness testing of metal materials, alloys, hard alloys, ceramics, and other materials. It can provide accurate hardness data, which is of great significance for evaluating material performance, optimizing processing techniques, and controlling product quality.
Features
1. High precision: Conforms to international standards with small errors.
2. Quick and easy: The testing process is rapid and the operation is simple.
3. Convenient reading: Similar to the reading mechanism of a micrometer, with good repeatability.
4. Strong adaptability: Suitable for various shapes and sizes of workpieces.
5. Multi-functionality: Supports multiple hardness scales and has wide applications.

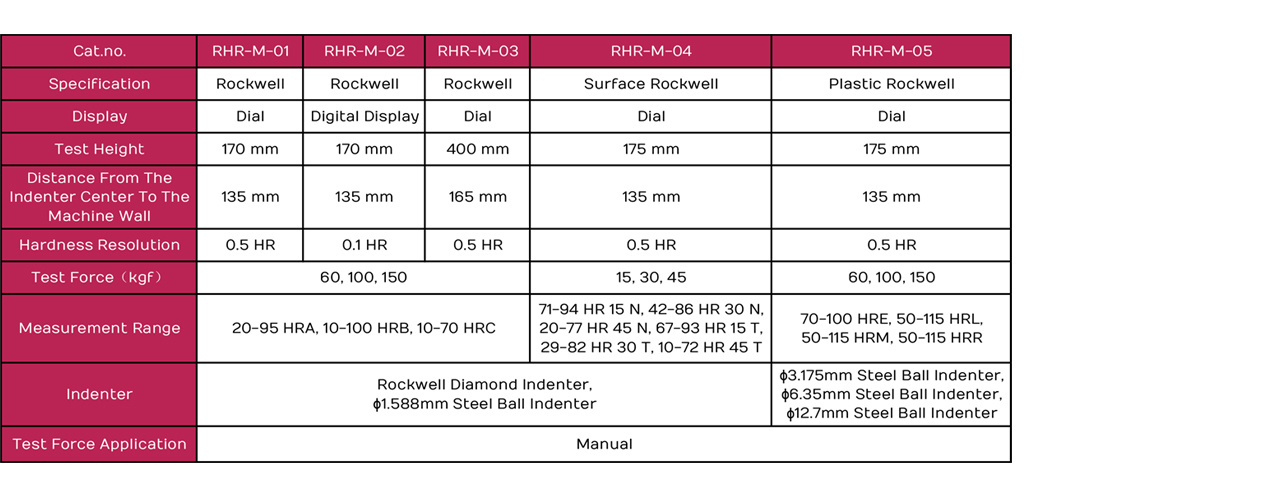

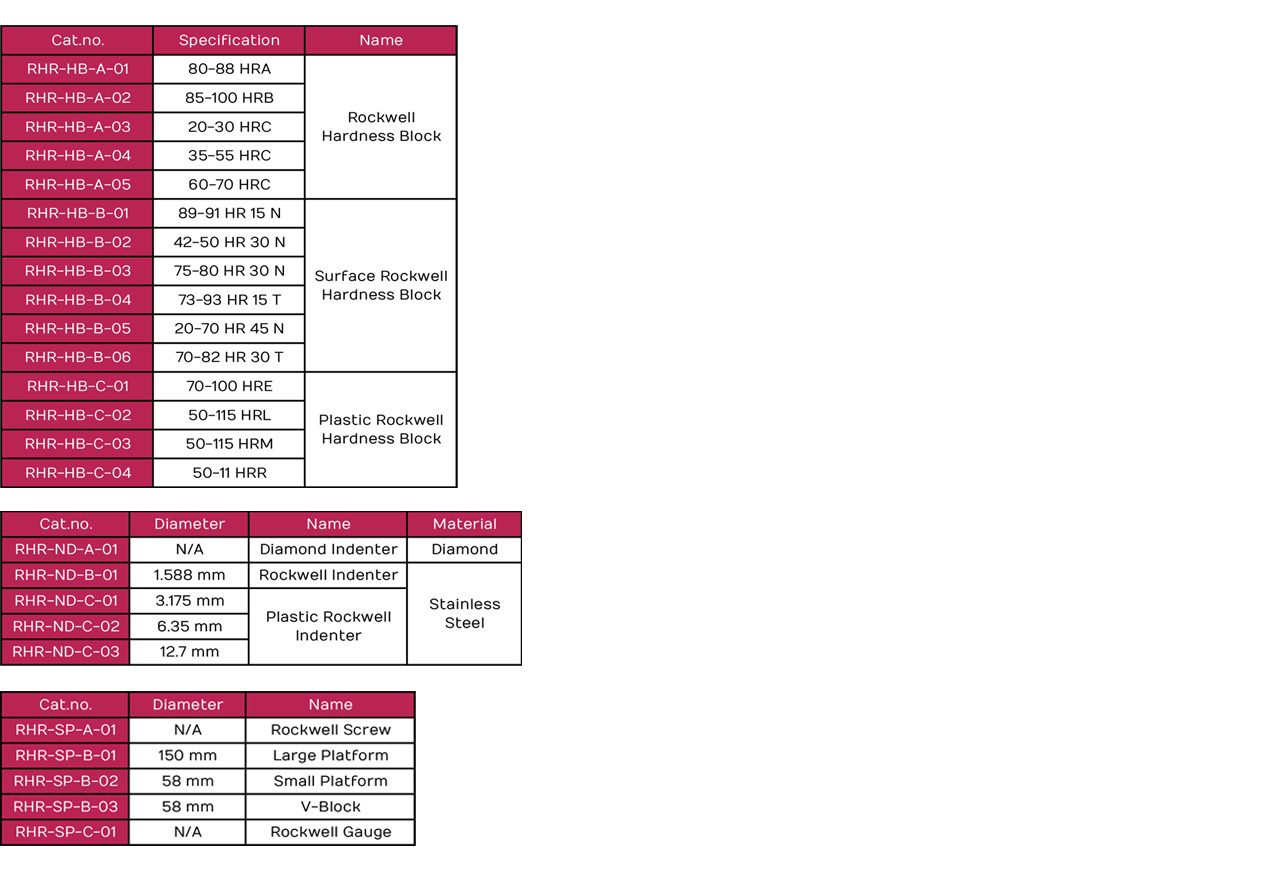

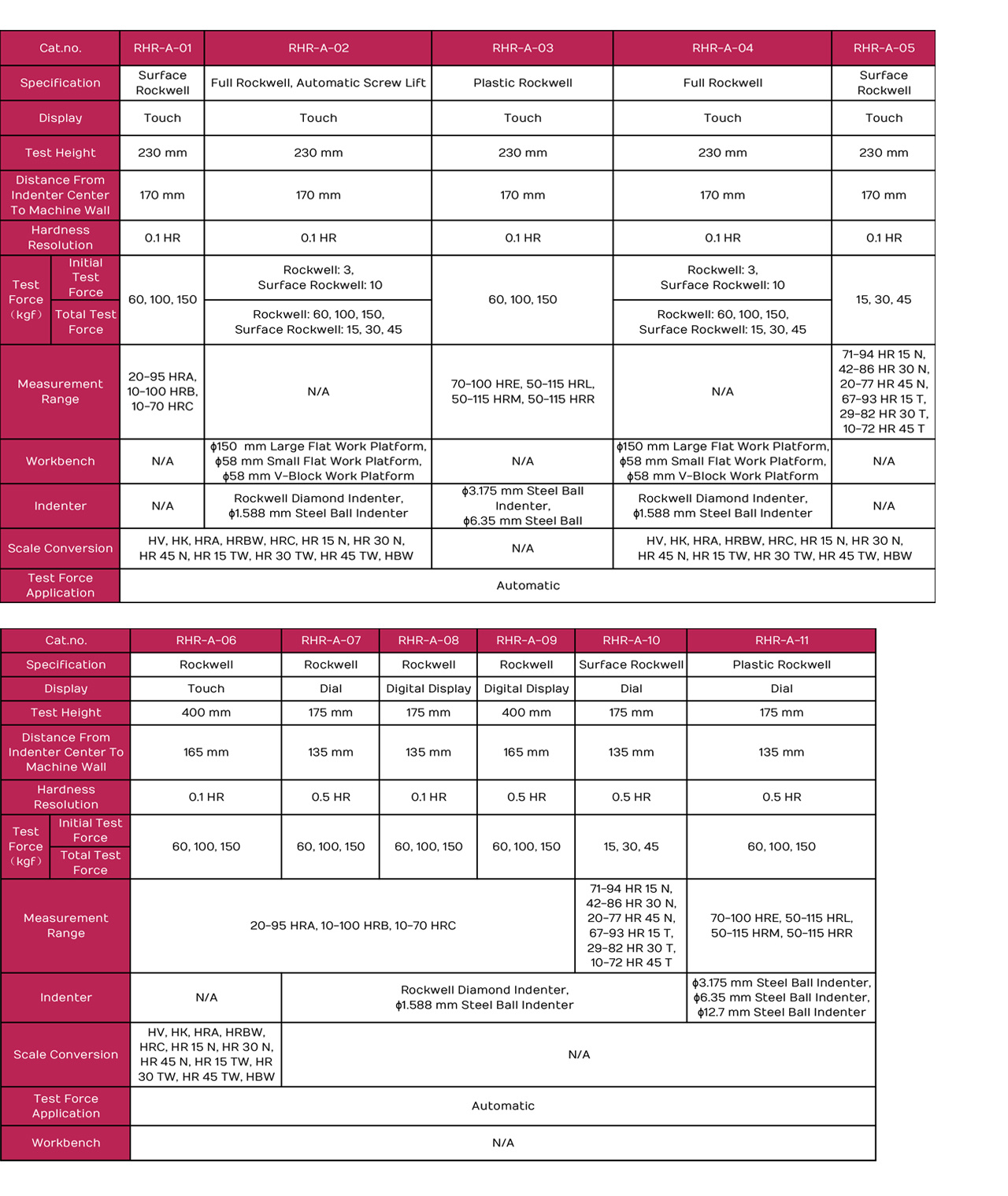

Technical data
Operation Precautions:
1. Calibration: Ensure the equipment is calibrated correctly.
2. Inspection: Check if the equipment components are in good condition.
3. Cleaning: Keep the workbench and sample surface clean.
4. Positioning: Place the sample correctly.
5. Scale: Select the appropriate hardness scale according to the material.
6. Loading: Apply the test force evenly.
7. Reading: Read the hardness value promptly.
keyword：
Rockwell Hardness Tester
Hardness Tester
Previous：
Next：
- 产品描述
- 概要参数
- 技术参数
-
- Brand: RUISCI
- Commodity name: Rockwell Hardness Tester
- Subtitle: Rockwell Hardness Tester
- Model: RHR-M,RHR-A,RHR-HB-A,RHR-HB-B,RHR-HB-C,RHR-ND-A,RHR-ND-B,RHR-ND-C,RHR-SP-A,RHR-SP-B,RHR-SP-C
- 全部型号: RHR-M-01,RHR-M-02,RHR-M-03,RHR-M-04,RHR-M-05,RHR-A-01,RHR-A-02,RHR-A-03,RHR-A-04,RHR-A-05,RHR-A-06,RHR-A-07,RHR-A-08,RHR-A-09,RHR-A-10,RHR-A-11,RHR-HB-A-01,RHR-HB-A-02,RHR-HB-A-03,RHR-HB-A-04,RHR-HB-A-05,RHR-HB-B-01,RHR-HB-B-02,RHR-HB-B-03,RHR-HB-B-04,RHR-HB-B-05,RHR-HB-B-06,RHR-HB-C-01,RHR-HB-C-02,RHR-HB-C-03,RHR-HB-C-04,RHR-ND-A-01,RHR-ND-B-01,RHR-ND-C-01,RHR-ND-C-02,RHR-ND-C-03,RHR-SP-A-01,RHR-SP-B-01,RHR-SP-B-02,RHR-SP-B-03,RHR-SP-C-01,Rockwell Hardness Tester,Hardness Tester
The Rockwell hardness tester is a precise instrument for hardness testing.
The Rockwell hardness tester is a precise instrument for hardness testing, which measures the resistance of a material's surface to a hard indenter (either a diamond cone or a carbide ball) using the Rockwell hardness test method. This test calculates the hardness value by applying an initial and main test force and measuring the depth of the indentation or the rebound of the indenter, expressed as a Rockwell hardness number (HR). The Rockwell hardness tester is widely used in the hardness testing of metal materials, alloys, hard alloys, ceramics, and other materials. It can provide accurate hardness data, which is of great significance for evaluating material performance, optimizing processing techniques, and controlling product quality.
-
1. High precision: Conforms to international standards with small errors.
2. Quick and easy: The testing process is rapid and the operation is simple.
3. Convenient reading: Similar to the reading mechanism of a micrometer, with good repeatability.
4. Strong adaptability: Suitable for various shapes and sizes of workpieces.
5. Multi-functionality: Supports multiple hardness scales and has wide applications. -
Operation Precautions:
1. Calibration: Ensure the equipment is calibrated correctly.
2. Inspection: Check if the equipment components are in good condition.
3. Cleaning: Keep the workbench and sample surface clean.
4. Positioning: Place the sample correctly.
5. Scale: Select the appropriate hardness scale according to the material.
6. Loading: Apply the test force evenly.
7. Reading: Read the hardness value promptly.
Q and A
Q
Distribution Modes:
A
Default Distribution Mode: EXW China Factory: After your payment is received, our customer service will contact you to confirm the pickup time and location once the goods are ready at the RUISCI China factory.
*Other options:
1.Carriage Paid To (CPT)
DO NOT PAY until you have contacted customer service to add shipping costs, as the default price is EXW China factory.
2.Delivered Duty Paid（DDP）
DO NOT PAY until you have ·contacted customer service to add Freight, insurance, taxes, customs clearance fees, and other miscellaneous expenses, as the default price is EXW China factory. Typically applies exclusively to small air cargo packages.
3. FOB China main port
DO NOT PAY until you have contacted customer service to add the inland charges and export declaration charges, as the default price is EXW China factory.
*** If you still need to consult other distribution modes or trade terms, please contact our customer service directly
Q
Payment methods:
A
1. On-line payment: Paypal
2. Off-line payment: Telegraphic Transfer (TT)
*All charges, except those incurred within our bank, are to be borne by the remitter. Insufficient payment will delay your shipment.
