Pencil Hardness Tester

Pencil Hardness Tester

RPHT-A,RPHT-B,RPHT-C,RPHT-D


RUISCI

Brand:

RUISCI


USD

64

Untaxed

EXW factory


  • Click to select
    • RPHT-A-01,Single-Mode,500±50g
    • RPHT-A-02,Single-Mode,750±50g
    • RPHT-A-03,Single-Mode,1000±50g
    • RPHT-B-01,3-in-1 Multi-Weight,6B~HB~6H(13pcs)
    • RPHT-B-02,3-in-1 Multi-Weight,6B~HB~6H(13pcs)
    • RPHT-B-03,3-in-1 Multi-Weight,6B~F~9H(17pcs)
    • RPHT-C-01,Hand-cranked Pencil Hardness Tester
    • RPHT-D-01,Electric Pencil Hardness Tester
    • RPHT-D-02,Touchscreen Electric Pencil Hardness Tester
Quantity
-
+

Inventory

1701

隐藏域元素占位


The Pencil Hardness Tester is an apparatus employed for measuring the hardness of pencils. By exerting a specific pressure, it evaluates the hardness level of the pencil lead. This device adheres to a standardized testing methodology, enabling precise classification of pencil hardness into multiple grades, spanning from 6B (the softest) to 9H (the hardest). Among these, HB represents a medium hardness level.


1. Insert a pencil and push the instrument horizontally with force to complete the test.
2. Equipped with stainless steel wheels and bearings for flexible use.
3. Weights can be directly placed inside to increase the weight of the pencil.
4. The all-metal body is sturdy and durable, ensuring more accurate weight measurement.

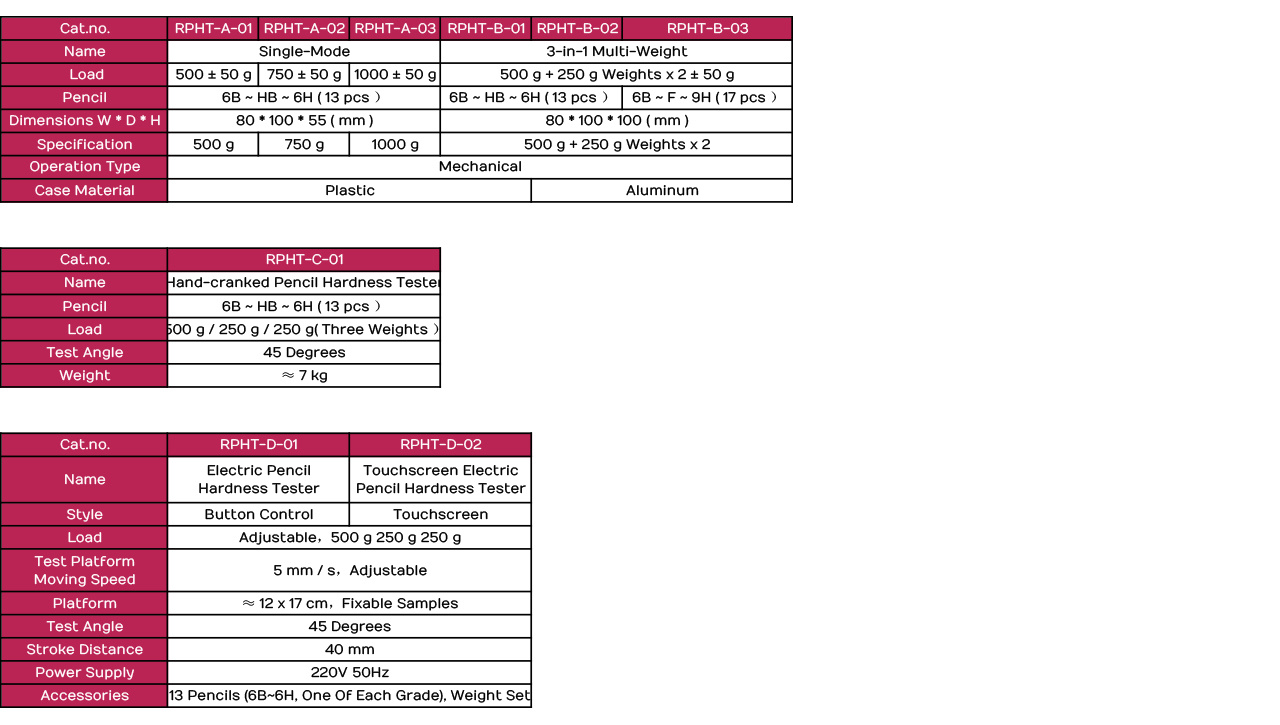

Technical data

Precautions:
1. Ensure the instrument is calibrated before use to guarantee the accuracy of the measurement results.
2. Clean the pencil lead and the test surface before testing to avoid dust or impurities affecting the results.
3. Apply force evenly during testing to avoid being too forceful or too gentle.
4. To ensure reliable results, it is recommended to test the same pencil multiple times and take the average.
5. Regularly inspect the mechanical components and calibration status of the instrument to ensure its normal operation.

keyword:

Pencil Hardness Tester

Pencil Scratch Hardness Tester

Portable Pencil Hardness Tester

Manual Push-Type Pencil Hardness Tester

Electric Paint Hardness Tester

Digital Paint Hardness Tester

Automatic Coating Hardness Tester

Hand-Crank Pencil Hardness Tester​

  • 产品描述
  • 概要参数
  • 技术参数
    • Brand: RUISCI
    • Commodity name: Pencil Hardness Tester
    • Subtitle: Pencil Hardness Tester
    • Model: RPHT-A,RPHT-B,RPHT-C,RPHT-D
    • 全部型号: RPHT-A-01,RPHT-A-02,RPHT-A-03,RPHT-B-01,RPHT-B-02,RPHT-B-03,RPHT-C-01,RPHT-D-01,RPHT-D-02,Pencil Hardness Tester,Pencil Scratch Hardness Tester,Portable Pencil Hardness Tester,Manual Push-Type Pencil Hardness Tester,Electric Paint Hardness Tester,Digital Paint Hardness Tester,Automatic Coating Hardness Tester,Hand-Crank Pencil Hardness Tester​

    The Pencil Hardness Tester is an apparatus employed for measuring the hardness of pencils.

    The Pencil Hardness Tester is an apparatus employed for measuring the hardness of pencils. By exerting a specific pressure, it evaluates the hardness level of the pencil lead. This device adheres to a standardized testing methodology, enabling precise classification of pencil hardness into multiple grades, spanning from 6B (the softest) to 9H (the hardest). Among these, HB represents a medium hardness level.

  • 1. Insert a pencil and push the instrument horizontally with force to complete the test.
    2. Equipped with stainless steel wheels and bearings for flexible use.
    3. Weights can be directly placed inside to increase the weight of the pencil.
    4. The all-metal body is sturdy and durable, ensuring more accurate weight measurement.

  • Precautions:
    1. Ensure the instrument is calibrated before use to guarantee the accuracy of the measurement results.
    2. Clean the pencil lead and the test surface before testing to avoid dust or impurities affecting the results.
    3. Apply force evenly during testing to avoid being too forceful or too gentle.
    4. To ensure reliable results, it is recommended to test the same pencil multiple times and take the average.
    5. Regularly inspect the mechanical components and calibration status of the instrument to ensure its normal operation.
